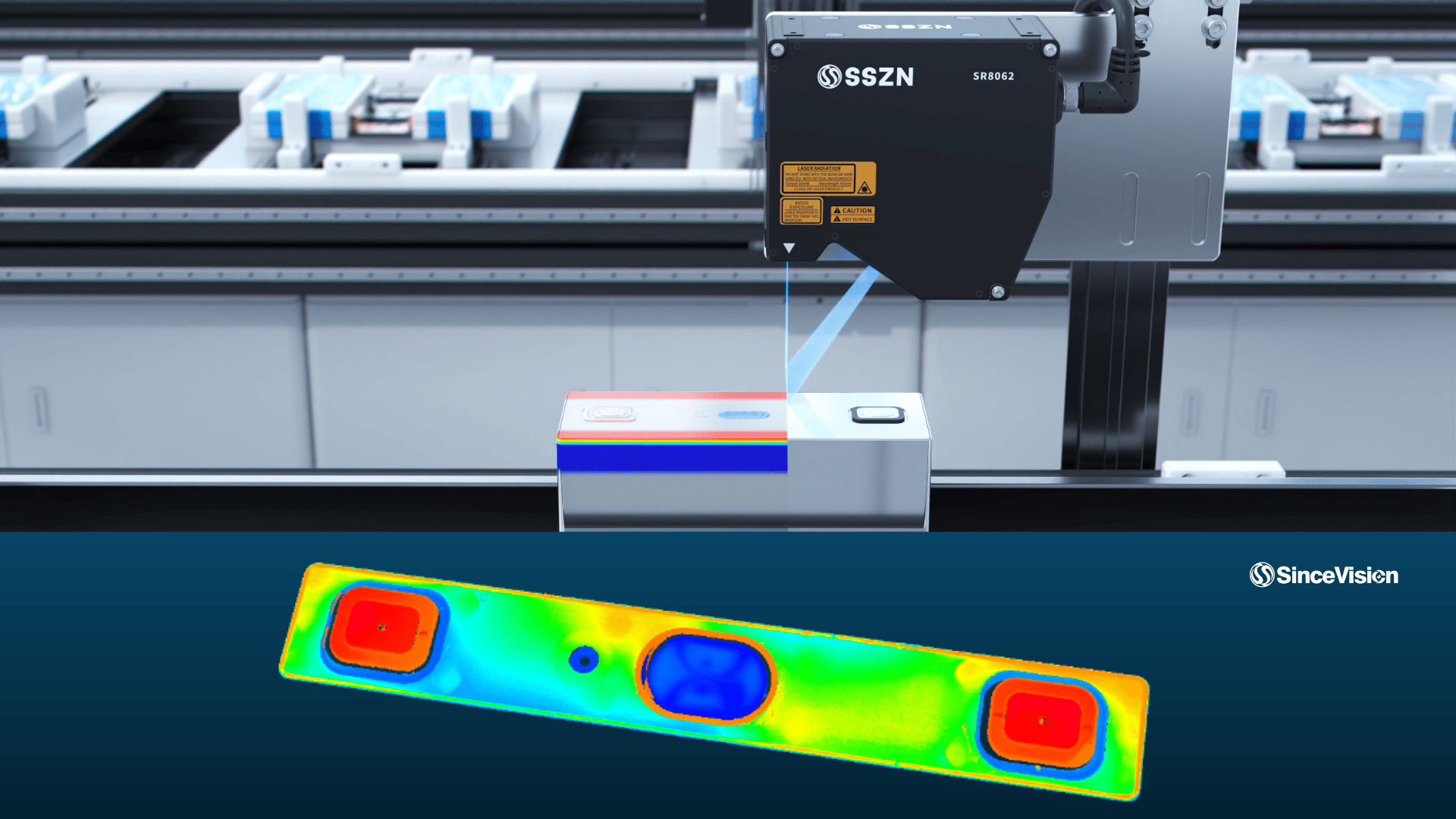

3D Laser Profiler for Lithium-Ion Battery Top Cover Bonding Height Measurement

Lithium ion battery top covers require accurate control of flatness, seating height, and surface profile. Small height differences can affect sealing, assembly consistency, and battery safety.

Manual measurement can be difficult to use on high speed production lines. It can also introduce measurement variation between operators. Traditional 2D cameras may not capture the complete three dimensional shape of reflective battery top covers.

SinceVision's SRI8000 Series 3D laser profiler provides non contact 3D measurement of the entire top cover surface. The system captures height and contour data at high speed and generates a 3D point cloud for detailed inspection.

Why Measure Lithium Ion Battery Top Cover Height?

The top cover must be seated at the correct height and remain sufficiently flat after assembly. Differences in the fitting height can indicate assembly problems or surface deformation.

For battery manufacturers, important inspection parameters include:

• Top cover flatness

• Bonding or seating height

• Height differences across the surface

• Protrusion height

• Surface contour

Accurate measurement helps identify dimensional variations before they affect downstream assembly or battery quality.

Challenges: Detecting Micron-Level Defects on Battery Top Covers

Lithium-ion battery top covers require precise flatness and seating height control. These measurements, separate from the cross-section of the battery terminals, directly affect battery sealing, assembly consistency, and safety. Manual inspection struggles to detect micron-level deviations and carries significant subjective error, making it unsuitable for high-speed production line cycles. The reflective surface and complex shape of the top cover also make it difficult for standard cameras to fully capture 3D features, which increases the risk of missed defects.

Solutions: High-Speed 3D Laser Profiling

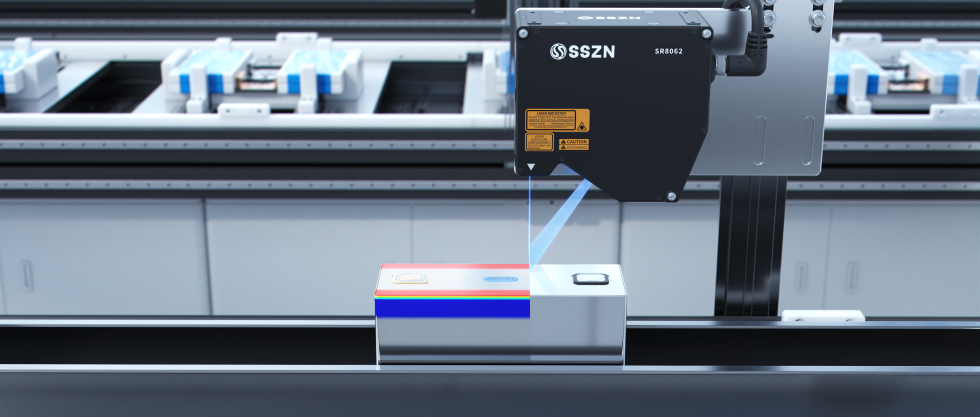

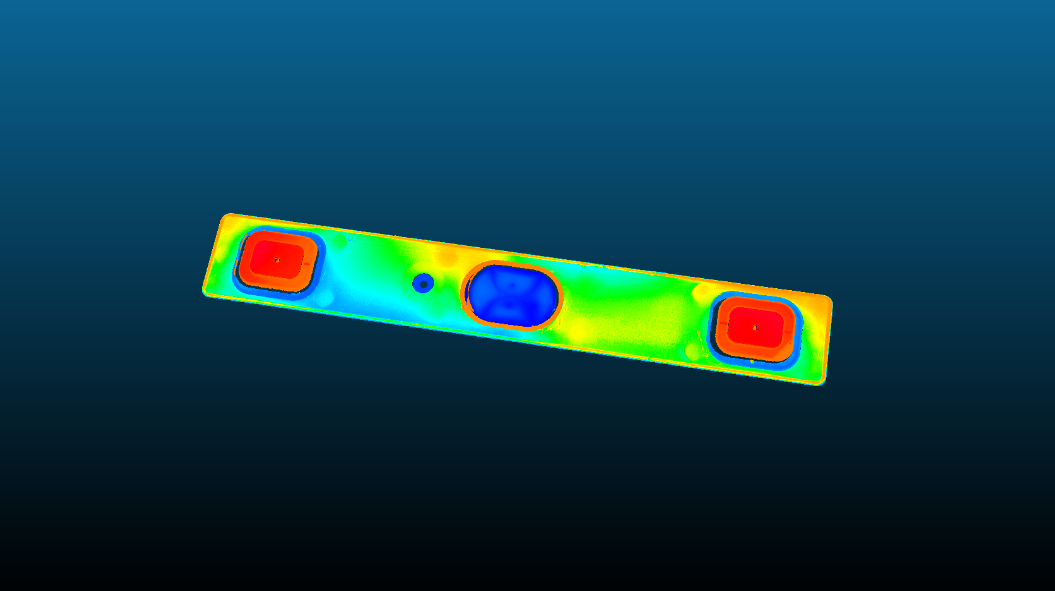

The SinceVision SRI8000 Series 3D laser profiling system scans the entire surface of the lithium-ion battery top cover at high speed. The system collects complete 3D geometric data and generates a clear 3D point cloud image of the top cover for bonding height and flatness analysis.

Key Advantages for Battery Top Cover Inspection

• Non-contact and non-destructive scanning protects the workpiece surface while maintaining high precision and efficiency.

• Z-axis repeatability of 0.4micrometers supports accurate detection of fitting height differences.

• A maximum scanning frequency of 67kHz with a single-line width of 49 to 69mm supports in-line detection matched to production line cycle times.

• Built-in algorithms automatically output flatness, bonding height, and peak protrusion height data.

• IP67-rated protection allows stable operation in high humidity and dusty production environments.

This fully automated process removes manual inspection error and supports consistent quality control on lithium-ion battery production lines.

Supporting Smart Manufacturing Quality Control

The SinceVision SRI Series combines high precision, high speed, and broad application adaptability to support smart manufacturing quality control, helping manufacturers catch micron-level defects before they reach the next production stage.

Request a live demo/sales inquiries

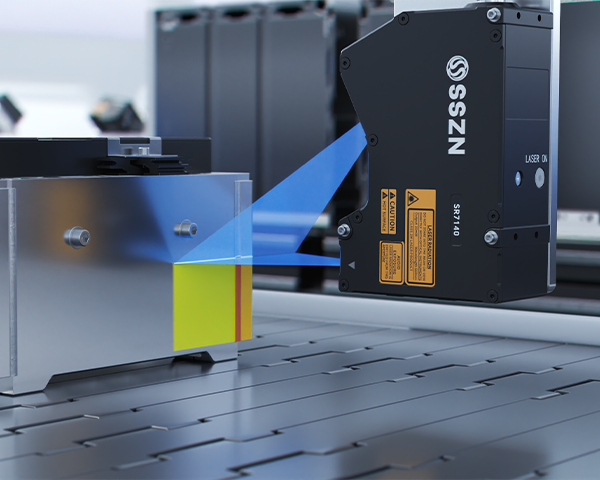

Additional Applications for 3D Laser Profiling Systems

The SRI Series also supports precise flatness, height difference, and contour dimension measurement across other manufacturing applications.

• Lithium-ion battery manufacturing: post-weld inspection of adapter pads, module side seam inspection, and adhesive defect detection in battery packs.

• Consumer electronics: mobile phone frame flatness, chip pin coplanarity, and segment-to-segment variation in camera modules.

• Automotive manufacturing: body weld pattern inspection, battery module dimension checks, and seal strip cross-section profiling.

Frequently Asked Questions

What does a 3D laser profiler measure on a lithium-ion battery top cover?

It measures flatness, bonding height, and seating height across the entire top cover surface, separate from the battery terminal cross-section.

How accurate is the SRI8000 Series 3D laser profiling system?

The system achieves 0.4-micrometer Z-axis repeatability, allowing detection of fitting height differences at the micron level.

Can 3D laser profiling systems handle high-speed battery production lines?

Yes. The SRI8000 Series scans at up to 67kHz with a single-line width of 49 to 69mm, matching in-line production cycle times.

Where else are 3D laser profiling systems used besides battery top covers?

The SRI Series is also used for battery pad and seam inspection, 3C electronics flatness checks, and automotive weld and seal profiling.
