Flame Burning with High-Speed Camera
Industry pain points and demands

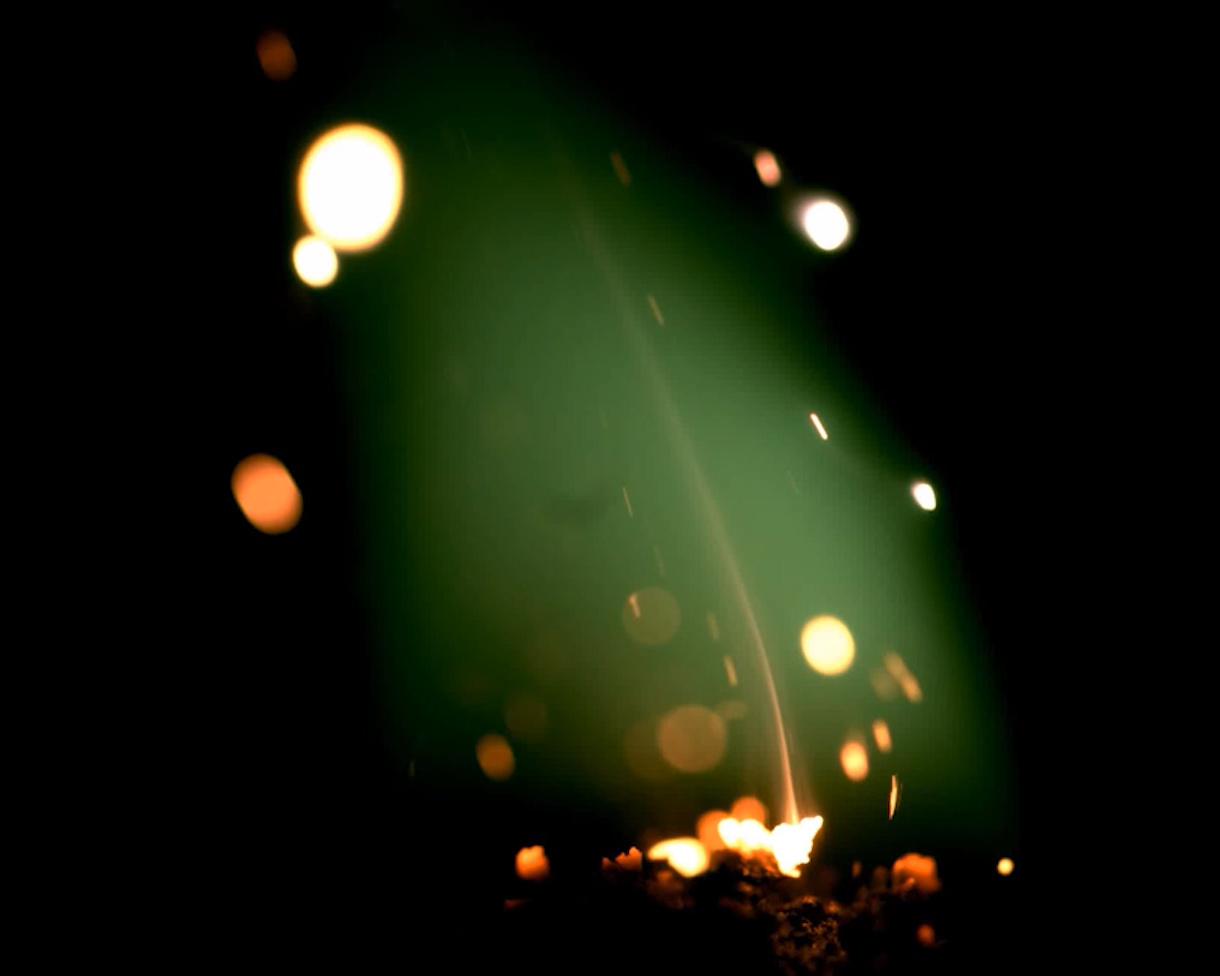

Combustion is a rapid exothermic luminescence process during REDOX reaction between combustibles and oxidants. Flame combustion is an important research content in the field of combustion. The propagation speed of different fuels is also quite different. Flame propagation speed is a very important characteristic of fuel combustion. The design of burner and the control of combustion process must take flame propagation speed as reference. Geometric features and motion modes, as important objects of combustion research, have been the focus of scholars at home and abroad. With the help of high-speed cameras, the whole combustion process can be clearly recorded.
Advantages & characteristics
01
The camera has a resolution of 2560×2016 and a frame rate of 3000fps
02
Hd color picture quality
Camera Selection
specification | |||
Model number | TYPE | SH6-504 | |
Maximum resolution | Full Resolution | 2560 x 2016 | |
Full shot speed | Full Frame Rate | 3600fps | |
Maximum shooting speed | Maximum Frame Rate | 50000fp | |
Minimum exposure time | Minimum Exposure Time | 1 mu s | |
Pixel size | Pixel Size | 9 microns | |
Standard memory | Standard RAM | 40 GB, 80 GB, and 160 GB are optional | |
Extended memory | Extended Memor | 4T, 12T, and 20T are optional | |
Dynamic range | Dynamic Range | 60dB | |
Analog gain | Analog Gain | X 2, x 4, x 8 | |
Bit depth | Bit Resolution | 8bit/10bit/12bit | |
Shutter type | Shutte Mode | Global shutter | |
color | Color | Monochrome (M)/Color (C) | |
Window acquisition | ROI | support | |
Lens bayonet | Lens Mount | Port E is used to switch to ports F, C, and EF | |
Data interface | Data Interface | Ten Gigabit Ethernet, adaptive Gigabit Ethernet | |
sensitivity | Sensitivity | ISO10000(M); ISO3000(C) | |
Fan control | Fan Control | Supports opening and closing, and ADAPTS the rotation speed according to the temperature | |
Operating Temperature/Humidity | Operating Temperature/Humidity | Standard -10~50 ℃, below 95% (without condensation), customizable -35~65 ℃ wide temperature version | |
Video Signal Output | Video Signal Output | SDI, Ethernet | |
Recording Mode | Recording Mode | Start, End, Center, Random, Manual | |
Trigger Mode | Trigger Mode | Manual, IO, Image | |
External Signal | External Signal |
Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIGB code signal Output: trigger (TTL/switch) signal, synchronization signal, ready signal, exposure signal, recording signal | |
Power Supply | Power Supply | Dual power supply, DC24V | |
Dimensions (excluding lens) | Dimensions (excluding lens) | 217D × 110W × 110H, excluding raised parts | |
Weight | Weight | 3.8kg | |
Power Consumption | Power Consumption | 55W | |
Standard Accessories | Standard Accessories | Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one |
