Height Detection of Cap Tightening Anomalies on Automated Packaging Lines

Executive Summary

• Problem: Cap tightening anomalies, specifically under tightening, over tightening, and cocked or tilted caps, compromise container seal integrity. This leads to leakage, contamination, and costly product recalls.

• Solution: SinceVision SD-C400 laser displacement sensor converts mechanical capping defects into high speed vertical profile and height deviation data.

• Key Specifications: 400mm reference distance, ±200mm measurement range, 150μm repeatability, 500μm spot size, and adjustable sampling frequencies up to 1kHz.

• Engineering Impact: Eliminates subjective manual checks and reduces processing overhead compared to complex 2D vision systems, delivering deterministic inline rejection at speeds exceeding 1,200 bottles per minute.

The Engineering Challenge: Cap Tightening Anomalies

In packaging automation, maintaining consistent capping torque is essential for product seal integrity. Cap tightening anomalies primarily describe three mechanical failure modes:

1. Under tightening: Insufficient torque leaves the closure seated above its nominal datum, leading to compromised seals, fluid leakage, and microbial contamination.

2. Over tightening: Excessive torque strips container threads, crushes inner foam or induction liners, and prevents end users from opening the closure.

3. Cocked and Cross Threaded Caps: Asymmetrical thread engagement causes the closure to sit tilted relative to the neck finish, compromising seal uniformity across the rim.

On high speed filling lines across the beverage, food, pharmaceutical, and chemical industries, minor height deviations represent significant failure risks. To prevent defective containers from reaching secondary packaging stages, automated lines require continuous, high speed dimensional verification.

Translating Torque into Height and Contour Data

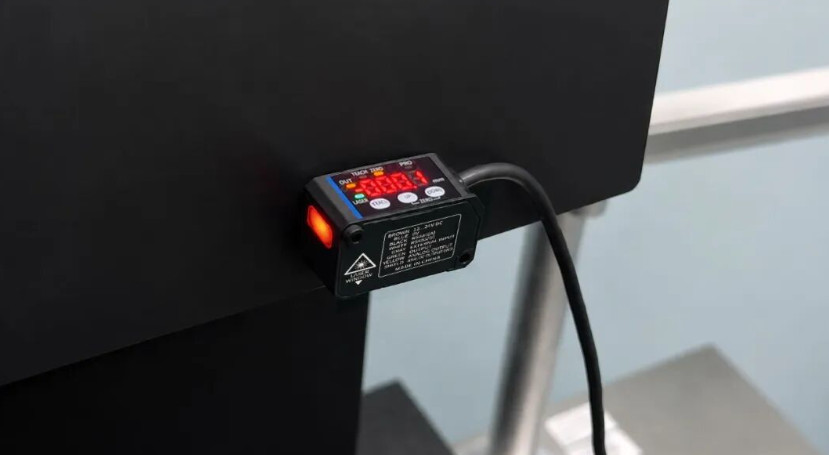

To inspect closures inline without physical contact, packaging engineers integrate the SinceVision SD-C400 laser displacement sensor directly above the conveyor downstream of the rotary capping station.

The SD-C400 features a 400mm reference distance and a wide ±200mm measurement range (spanning distances from 200 mm to 600mm).This large standoff distance allows facilities to mount the sensor safely above rotary starwheels and capping turrets without interfering with moving machinery. Furthermore, the expansive measuring span means the line can seamlessly switch from small 50ml vials to large 2 liter bottles without requiring mechanical sensor repositioning.

Operating with a concentrated 500μm spot size and a safe 1mW laser output power, the sensor achieves 150μm repeatability in the near field (200 to 400mm) and 400μm repeatability in the far field (400 to 600mm).When a closure is under tightened or cross threaded, the total vertical height of the container assembly deviates from the calibrated baseline threshold:

• Nominal Torque: Cap surface height falls strictly within the acceptance window.

• Under Tightened: Cap height consistently exceeds the upper dimensional threshold.

• Cocked Cap: As the container passes through the laser spot, the sensor captures a dynamic height slope across the cap surface, immediately registering the angular tilt.

The SD-C400 outputs analog or discrete digital signals directly to high speed pneumatic reject mechanisms, removing defective containers without interrupting line flow.

Technology Comparison: Cap Inspection Methods

High Speed Inline Performance and Line Integration

Modern bottling and packaging lines frequently operate at speeds between 600 and 1,200 bottles per minute (10 to 20 units per second). At a standard conveyor speed of 1.5 meters per second, a cap measuring 30 mm in diameter passes under an inspection point in approximately 20 milliseconds.

With a 1 kHz sampling frequency, the SinceVision SD-C400 collects 20 distinct height data points across a single container closure during transit. This multi point profile allows the system to verify not only gross vertical displacement but also surface flatness and cap tilt.

The sensor's non-contact measurement principle eliminates surface abrasion, scratching, or bottle tipping. Its compact housing allows installation in tight machine transfer points or directly along existing linear conveyors without requiring extensive mechanical modification.

Frequently Asked Questions (FAQs)

How does a laser displacement sensor detect a tilted or cocked cap?

As the container moves continuously along the conveyor, the 1 kHz laser captures a continuous height profile across the closure diameter. If the cap is cross threaded or tilted, the sensor registers an asymmetrical height differential between the leading edge, center, and trailing edge, triggering an immediate rejection.

Why choose a laser displacement sensor over a 2D machine vision camera for capping inspection?

While 2D cameras provide visual surface details, they are sensitive to fluctuating ambient lighting, reflection off wet cap surfaces, and require dedicated image processing computing. The SinceVision SD-C400 operates independently of color and ambient light variations, providing direct numerical height data at lower system complexity and zero image processing latency.

Can the SD-C400 inspect transparent or highly reflective closures?

Yes. Through optimized exposure control and high efficiency optical filtering, the sensor maintains stable triangulation signals across challenging packaging materials, including glossy plastics, aluminum roll on pilfer proof closures, and transparent lids.
