Railway Inspection Solution: SinceVision's SR5320 3D Laser Profiler
The SR5320 utilizes a blue light source to project a laser beam onto the target surface. By measuring the reflected light, the sensor accurately determines the distance between the laser and the surface, creating a precise 3D profile.
SinceVision's SR5320 3D Laser Profiler is a game-changer for the transportation and railway industry. With its exceptional speed, accuracy, and versatility, the SR5320 empowers operators to optimize efficiency, ensure safety, and maintain critical infrastructure.
Key Features:
· Ultra-Fast Scanning: Capture detailed 3D profiles at speeds up to 67K/s.
· Wide Measurement Range: Scan an area as large as 440mm x 640mm in a single pass.
· Precision Measurement: Achieve exceptional accuracy with a resolution of 3200 points along the X-axis.

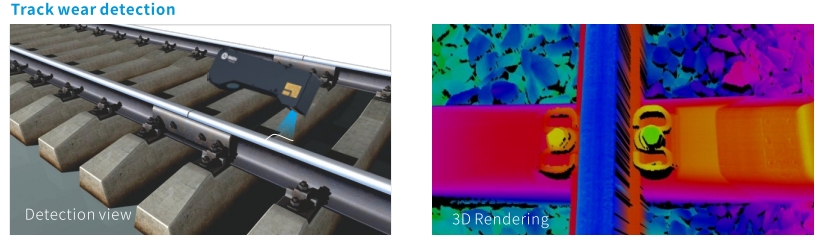

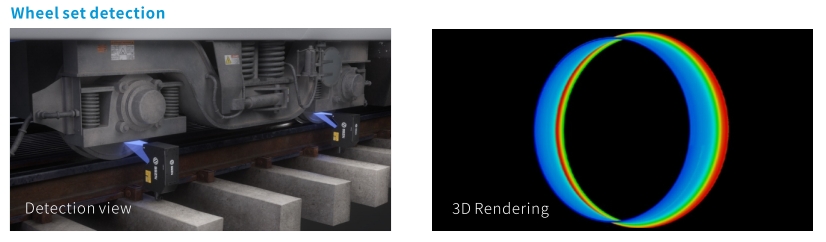

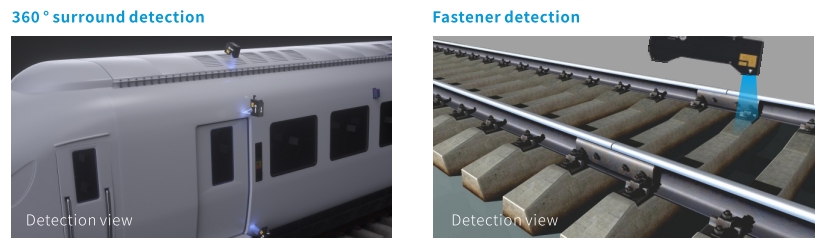

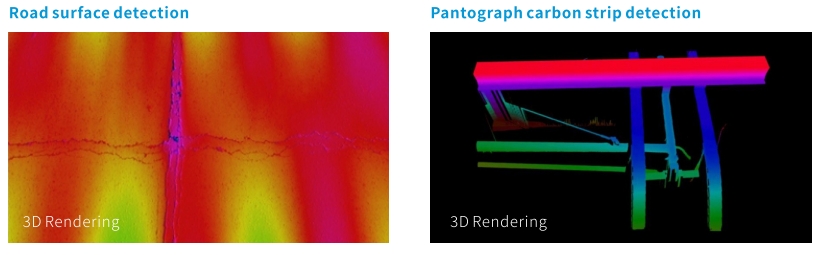

· Versatile Applications: Ideal for railway surround detection, wheelset inspection, track wear monitoring, and more.
How it Works:
The SR5320 utilizes a blue light source to project a laser beam onto the target surface. By measuring the reflected light, the sensor accurately determines the distance between the laser and the surface, creating a precise 3D profile.
Applications:




Benefits for the Transportation Industry:
· Enhanced Safety: Detect potential hazards and track wear to prevent accidents and ensure safe operations.
· Improved Efficiency: Optimize maintenance and repair schedules by accurately assessing infrastructure conditions.
· Cost Savings: Reduce downtime and maintenance costs by identifying issues early.
· Data-Driven Decisions: Gather valuable data to inform maintenance strategies and improve overall performance.
Technical Specifications:
· Scanning Speed: Up to 67,000 points per second
· X-axis Width: 440mm-640mm
· Resolution: 3200 points
· Reflection Angle: 35 degrees
· Working Humidity: 35% - 85% (non-condensing)
· Operating Temperature: 0°C - 50°C
· Dimensions: 460mm x 92.5mm x 62mm
Experience the Power of Precision with the SR5320.
SinceVision, a leading manufacturer of cutting-edge sensor technology empowers manufacturers worldwide to achieve unparalleled quality control and precision.
We are dedicated to developing innovative solutions that leverage high-speed cameras, 3D laser profilers, and laser displacement sensors, all designed to address the specific needs of the modern manufacturing landscape.
