SR5320
Product Introduction
It is a measuring instrument specially tailored for the transportation track railway industry. It adopts 450nm blue light source with ultra-fast scanning speed, up to 67K/s, and can scan the X-axis width of 440mm-640mm, which is suitable for railway surround detection, wheelset detection, track wear detection and so on.
Download related documents
Contact Now
price
Technical specifications

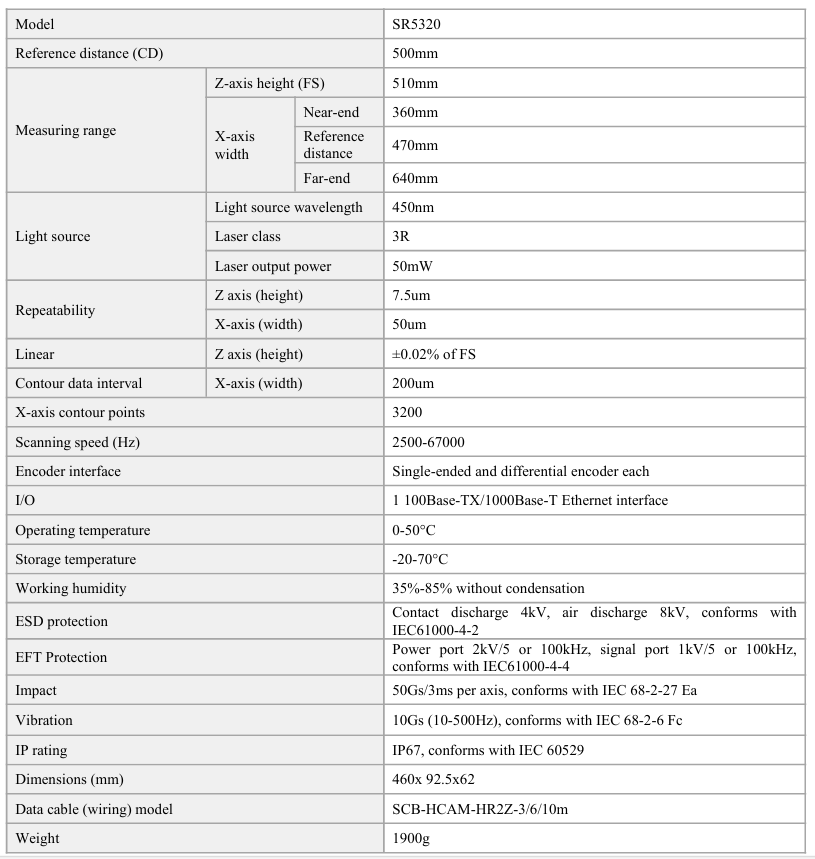

| Model | SR5320 |
|---|---|
| Reference distance (CD) | 500mm |
| Measuring range | Z-axis height (FS): 510mm X-axis width Near-end: 360mm Reference distance: 470mm Far-end: 640mm |
| Light source | Light source wavelength: 450nm Laser class: 3R Laser output power: 50mW |
| Repeatability | Z axis (height): 7.5um X-axis (width): 50um |
| Linear | Z axis (height): ±0.02% of FS |
| Contour data interval | X-axis (width): 200um |
| X-axis contour points | 3200 |
| Scanning speed (Hz) | 2500-67000 |
| Encoder interface | Single-ended and differential encoder each |
| I/O | 1 100Base-TX/1000Base-T Ethernet interface |
| Operating temperature | 0-50℃ |
| Storage temperature | -20-70℃ |
| Working humidity | 35%-85% without condensation |
| ESD protection | Contact discharge 4kV, air discharge 8kV, conforms with IEC61000-4-2 |
| EFT Protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, conforms with IEC61000-4-4 |
| Impact | 50Gs/3ms per axis, conforms with IEC 68-2-27 Ea |
| Vibration | 10Gs (10-500Hz), conforms with IEC 68-2-6 Fc |
| IP rating | IP67, conforms with IEC 60529 |
| Dimensions (mm) | 460x 92.5x62 |
| Data cable (wiring) model | SCB-HCAM-HRZZ-3/6/10m |
| Weight | 1900g |
