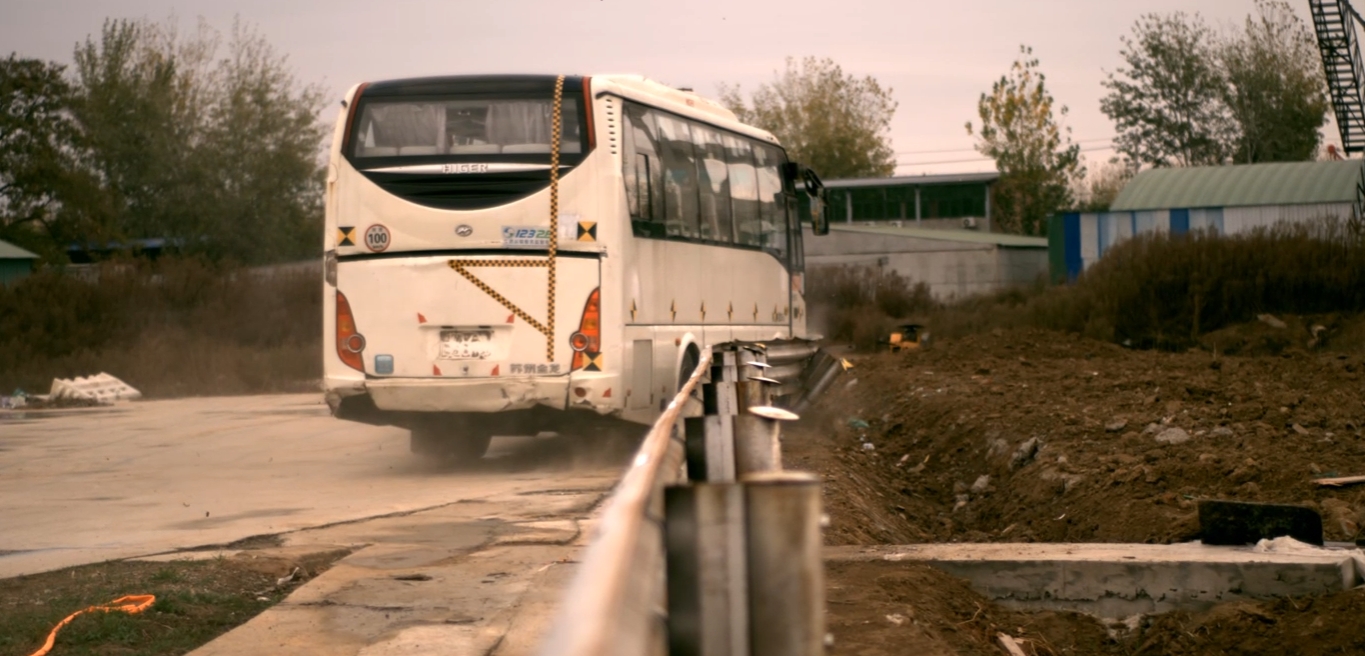

1000FPS High-Speed Camera Captures Bus Crash Test

In the pursuit of enhanced vehicle safety, researchers and engineers rely on advanced tools to capture and analyze crash dynamics. A recent bus crash test, recorded with the SinceVision SH6-501 high-speed camera, exemplifies the critical role of this technology in understanding and improving safety standards.

Problem:

Traditional methods of analyzing crash tests, such as relying solely on post-impact inspection and standard video cameras, often fail to capture the crucial details of these dynamic events. Bus crashes, in particular, involve significant structural deformation and complex interactions between vehicle components and occupants. Without detailed data, it is challenging to:

a. Accurately validate and improve computer crash simulations.

b. Design safer vehicle structures to better absorb impact forces.

c. Develop more effective restraint systems to minimize occupant injuries.

d. Gain a comprehensive understanding of the injury mechanisms involved in bus accidents.

Solution:

The SinceVision SH6-501 high-speed camera provides a solution to these challenges.

The SinceVision SH6-501 is a full-featured high-speed camera designed for demanding applications in scientific research, national defense, aerospace, and high-speed industry settings. This camera employs a specialized custom sensor and unique circuit design to achieve a 50Gbps effective bandwidth, delivering exceptional image quality. Its versatile and expandable interface options provide researchers with increased flexibility for a wide range of high-speed imaging applications.

Key Features of the SinceVision SH6-501:

1. High Resolution and Frame Rate: Captures footage at 2560×2016 resolution and 1000fps.

2. Memory Capacity: Standard memory (RAM) up to 160 GB; extended memory up to 20TB.

3. Shutter Mode: Global shutter.

The ability to record a bus crash test at 1000fps allows engineers to observe the intricate details of the impact, including structural deformation, material behavior, and the performance of safety systems. This level of detail is crucial for:

i. Validating and improving computer crash simulations.

ii. Designing safer vehicle structures.

iii. Developing more effective restraint systems.

iv. Understanding injury mechanisms.

By providing a clear and detailed record of these events, high-speed cameras like the SinceVision SH6-501 contribute significantly to the advancement of automotive safety and the protection of lives.

Explore more on SH6-501 and contact us for sales/sample/demo.
