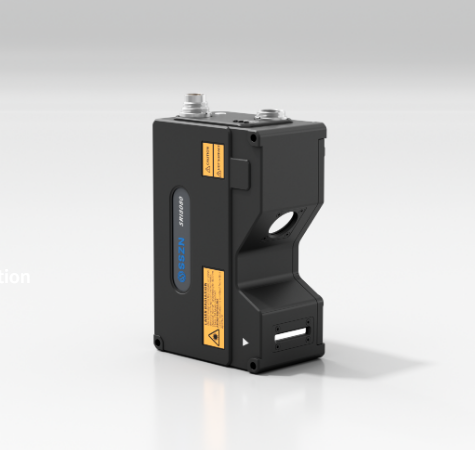

SRI8080

SRI8080

Working distance is 80mm

X-axis reference width is 58mm

Z-axis repeatability is 0.4μm

Scanning speed: 2300-67000Hz

Z-axis linearity: ± 0.02% of F.S.

Laser rating: 2M

Request a trial Compare Products

Favorites Saved to favorites

  • SRI8080
  • SRI8080
  • SRI8080

    • Complies with FCC standards

    Product Specifications
    Model SRI8080
    Reference distance (CD) 80 mm
    Z-axis height (FS) 47.5 mm
    X-axis width - Near-end 49 mm
    X-axis width - Reference distance 58 mm
    X-axis width - far end 69 mm
    Light source wavelength 405 nm
    Laser Class 2M
    Laser output power 10 mW
    Z-axis repeatability 0.4 μm
    X-axis repeatability 5 μm
    X-axis data interval 20 μm
    Z-axis linearity ±0.02 % F.S.
    Number of X-axis contour points 3200
    Scanning speed 2300-67000 HZ
    Weight 1150 g
    Size 150*60*95 mm
    Operating temperature 0~50 ℃
    Storage temperature -20~70 ℃
    Operating voltage 24VDC±10%
    Communication methods 1 × 100Base-TX / 1000Base-T Ethernet port
    Shell material aluminum alloy

    Accessories

    SCB-HNET-HR2Z

    SCB-HNET-HR2Z
    SCB-HNET-HB2Z

    SCB-HNET-HB2Z
    SCB-HIO-HR2Z

    SCB-HIO-HR2Z
    SCB-HIO-HB2Z

    SCB-HIO-HB2Z

    Downloads

    3D Laser Profiler Product Catalog SinceVision

    3D Laser Profiler Product Catalog SinceVision Hot New

    PDF / 12.13MB

    Product Manual

    Download Now Add to Download List Share file link

    Case Studies

    Inspecting Optical Module Housings in AI Servers with 3D Laser Profilers

    Inspecting Optical Module Housings in AI Servers with 3D Laser Profilers

    Application Product Manual 3D Laser Profiler SRI Series
    High-Precision Flatness Inspection for AI Server Cooling Plates

    High-Precision Flatness Inspection for AI Server Cooling Plates

    Product Manual 3D Laser Profiler SRI Series
    Height Detection of Connector Pin

    Height Detection of Connector Pin

    Automotive Application 3D Laser Profiler
    Mobile Phone Screen Flatness Detection

    Mobile Phone Screen Flatness Detection

    Consumer Electronics 3D Laser Profiler
    360° Detection of Train

    360° Detection of Train

    Transportation 3D Laser Profiler
    Detection for Automotive Component Height

    Detection for Automotive Component Height

    Automotive Laser Displacement Sensor

    Related Products

    SR8020

    SR8020

    Z-axis repeatability 0.1μm, scan speed 3200-67000Hz, X-axis width 13-16mm
    Product Details Request a Trial Add to Favorites
    SR8060

    SR8060

    Z-axis repeatability 0.2μm, scanning speed 3200-67000Hz, X-axis width 26-36mm
    Product Details Request a Trial Add to Favorites
    SR8060K

    SR8060K

    Z-axis repeatability 0.2μm, scanning speed 3200-67000Hz, X-axis width 28mm
    Product Details Request a Trial Add to Favorites
    SR8060H

    SR8060H

    Z-axis repeatability 0.2μm, scan speed 10000-67000Hz, X-axis width 13mm
    Product Details Request a Trial Add to Favorites
    SR8062

    SR8062

    Z-axis repeatability 0.15μm, scanning speed 2500-67000Hz, X-axis width 16-17.6mm
    Product Details Request a Trial Add to Favorites

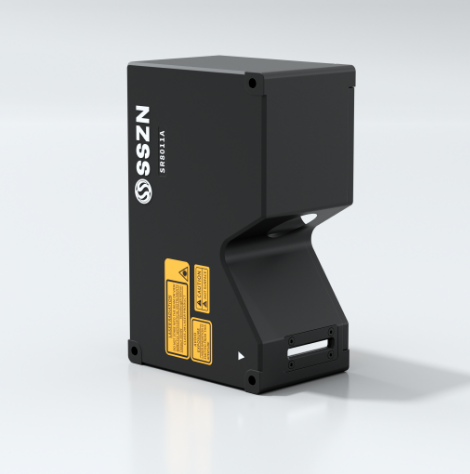

    SR8011A

    SR8011A

    SR8011A is an ultra‑high‑resolution 3D laser profiler from SinceVision designed for micro‑precision industrial inspection. It features a 1.2 µm X‑axis line width, a scanning speed of 2500–67000 Hz, ±0.02% of full‑scale Z‑axis linearity, and a 405 nm Class 3B laser. Its very fine line width enables detailed 3D measurement of small features, making it suitable for high‑accuracy quality control and metrology applications.
    Product Details Request a Trial Add to Favorites
