Height Detection of Connector Pin
This application demonstrates how the SRI8060 3D Laser Profiler restores the shape of connector pin tips to reliably identify missing, broken, and crooked pins before product insertion.
Product Inquiry
Related tags
Purpose:
By restoring the shape of the pin top, it is possible to identify missing pins, broken pins, and crooked pins, preventing pin collisions during automotive product insertion.
Solution: 3D Laser Profiler for Automotive Inspection
Using the integrated SRI8060 3D Laser Profiler, mounted in a mirror angle configuration, scan the deep frame opening area.
Advantages:
Achieves height difference repeatability accuracy of 0.015mm, speed of 124mm/s, and completes detection in 1.5s
Mirror angle mounting minimizes obstruction from triangular blind spots
3200 dots are densely arranged to ensure clear reproduction of the fine needle tip

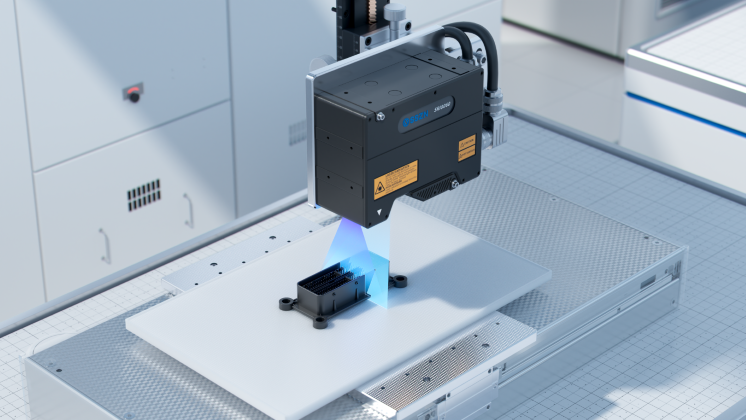

Image: Height Detection of Connector Pin
