SR9160
Product Introduction
X-axis contour resolution: 6400 points
X-axis line width: 84–120 mm
Scanning speed: 1,500–13,000 Hz
Z-axis linearity: ±0.02% of full scale (F.S.)
Light source wavelength: 405 nm
Laser safety class: 2M
Download related documents
Contact Now
price

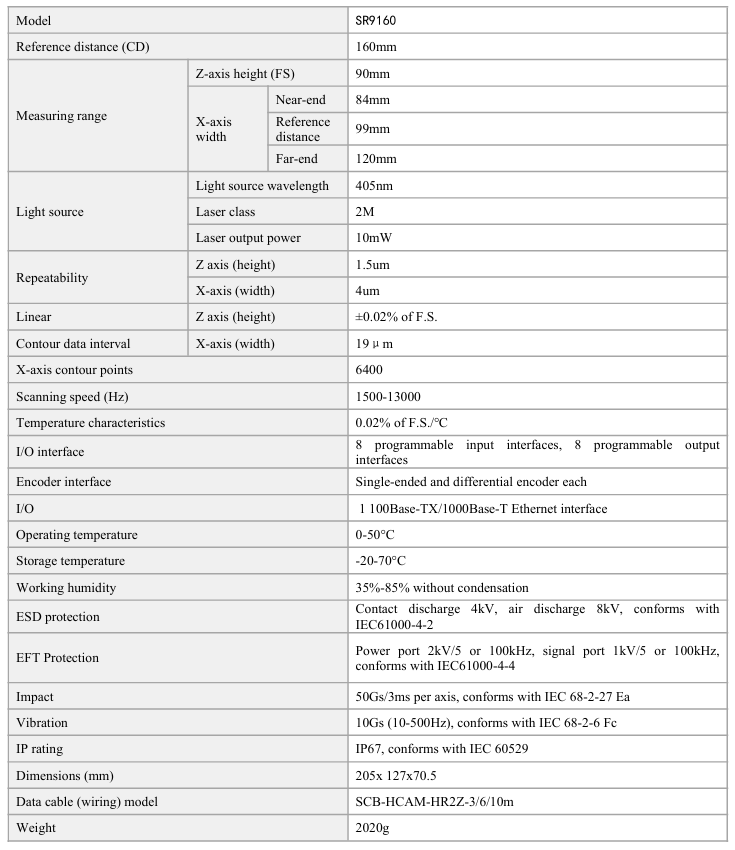

Technical specifications
| Model | SR9160 |
| Reference distance (CD) | 160mm |
| Measuring range - Z-axis height (FS) | 90mm |
| Measuring range - X-axis width - Near-end | 84mm |
| Measuring range - X-axis width - Reference distance | 99mm |
| Measuring range - X-axis width - Far-end | 120mm |
| Light source - Light source wavelength | 405nm |
| Light source - Laser class | 2M |
| Light source - Laser output power | 10mW |
| Repeatability - Z axis (height) | 1.5um |
| Repeatability - X-axis (width) | 4um |
| Linear - Z axis (height) | ±0.02% of F.S. |
| Contour data interval - X-axis (width) | 19μm |
| X-axis contour points | 6400 |
| Scanning speed (Hz) | 1500 - 13000 |
| Temperature characteristics | 0.02% of F.S./°C |
| I/O interface | 8 programmable input interfaces, 8 programmable output interfaces |
| Encoder interface | Single - ended and differential encoder each |
| I/O | 1 100Base - TX/1000Base - T Ethernet interface |
| Operating temperature | 0 - 50°C |
| Storage temperature | -20 - 70°C |
| Working humidity | 35% - 85% without condensation |
| ESD protection | Contact discharge 4kV, air discharge 8kV, conforms with IEC61000 - 4 - 2 |
| EFT Protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, conforms with IEC61000 - 4 - 4 |
| Impact | 50Gs/3ms per axis, conforms with IEC 68 - 2 - 27 Ea |
| Vibration | 10Gs (10 - 500Hz), conforms with IEC 68 - 2 - 6 Fc |
| IP rating | IP67, conforms with IEC 60529 |
| Dimensions (mm) | 205x127x70.5 |
| Data cable (wiring) model | SCB - HCAM - HR2Z - 3/6/10m |
| Weight | 2020g |
