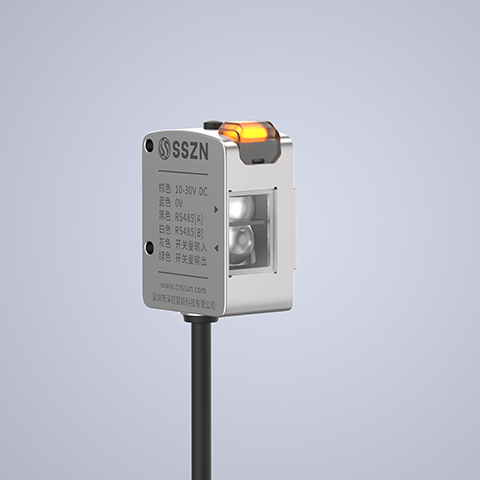

SS1-70K5
Product Introduction
Combining optical and electronic technology, it adopts RS485
communication mode, with response time as short as 200μs,
which can accurately and quickly identify and
distinguish various colors.
Download related documents
Contact Now
price
Technical specifications
| Model | SS1 - 70K5 |
| Measurement range | 30~70mm |
| Minimum spot size | 4.5 x 4.5mm². Measurement range over 50mm |
| Response time | 200μs/500μs/1ms/10ms/100ms/500ms, Switchable |
| Light source | White LED |
| Interference reduction | Set different frequencies. Support two sets |
| Timer | Off / Switch on Delay / Switch off Delay / Single time |
| Power supply - Voltage | 10~30 VDC，including ±10% ripple (P - P) |
| Power supply - Current | ≤60 mA, 24 VDC (without load) < 110 mA, 12 VDC (without load) |
| Connection cable | 6 - core 2 meters trailing cable |
| I/O - Control output | PNP/NPN Open Collector, switchable ≤30 V, < 50 mA, and residual voltage ≤ 2 v N.O./N.C. switchable. |
| I/O - External input | Calibration/stop lighting, switchable Short circuit current: NPN:≤1mA / PNP:≤2 mA. Please refer to the wiring diagram for the loading voltage. Please refer to the timing chart for input time. |
| Communication methods | RS - 485 |
| Power - saving mode | Power - saving mode is not turned on by default. After the power - saving mode is turned on, numbers on the screen will automatically turn off after 15s without any operation, and press any button to return to normal. |
| Protection circuit | Power reversed connection protection, power surge protection, output overcurrent protection, output reversed connection protection, output overload protection and output short circuit protection. |
| Environmental resistance - Waterproof | IP67 (IEC60529) |
| Environmental resistance - Ambient light | Incandescent light: ≤10000 lx; Sunlight: ≤20000 lx |
| Environmental resistance - Ambient Temp. humidity | -20～50°C, 35～85%RH (No condensation or freezing) |
| Environmental resistance - Vibration resistance | 10~55Hz, 1.5mm double amplitude for 2 hours each in X, Y, and Z directions |
| Environmental resistance - Shock resistance | 1000m/s², 6 times each in X, Y, and Z directions |
| EMC | EMC Directive (2014/30/EU) |
| Compliance | RoHS Directive (2011/65/EU), RoHS in China (No. 32) |
| Materials | Shell: Aluminum alloy; LED Indicator cover: PC; Key: PC+ABS; Lens cover: glass; Display cover plate: PMMA with coating to prevent damage; Cable and protective cap: PVC |
| Dimension | 45mm x 33mm X 22.5mm |
| Weight | 107g (including a 2 - meter cable) |
