Optimizing Curved Contour Inspection in Consumer Electronics

Executive Summary

• Challenges: Smartwatch back covers require exact dimensional accuracy. Minute deviations in curvature can degrade the user's wearing experience and reduce the accuracy of biometric health sensors by altering the distance to the skin.

• Solution: The SinceVision SCI03560 confocal displacement sensor provides high-precision, non-contact measurement specifically engineered for complex curved surfaces.

• Key Capabilities: Features an ultra-fine 5.8μm spot size for micro-feature detection, a ±60° angle tolerance for steep curves, and a 33kHz sampling frequency for rapid in-line production scanning.

• Result: Reliable identification of localized height deviations and surface deformations, ensuring strict quality control and assembly consistency in consumer electronics manufacturing.

Challenges of Curved Contour Inspection in Consumer Electronics

As smartwatches and wearable devices become increasingly slim and sophisticated, the manufacturing tolerances for their structural components have tightened significantly. The back cover of a smartwatch is particularly critical because it comes into direct contact with the user's wrist.

The curved contour precision of this back cover directly impacts two major factors:

1. Ergonomics: Any deviation in curvature or height alters how the device fits, reducing overall wearing comfort.

2. Sensor Accuracy: An improper contour changes the focal distance between the device's built-in optical sensors and the user's skin. This misalignment can severely impact the stability and accuracy of vital health data collection, such as continuous heart rate and blood oxygen monitoring.

Consequently, high-precision curved contour inspection measuring curvature, height, and subtle topological changes has become an indispensable quality control step in the production of modern consumer electronics.

Solution: SinceVision SCI03560 Confocal Displacement Sensor

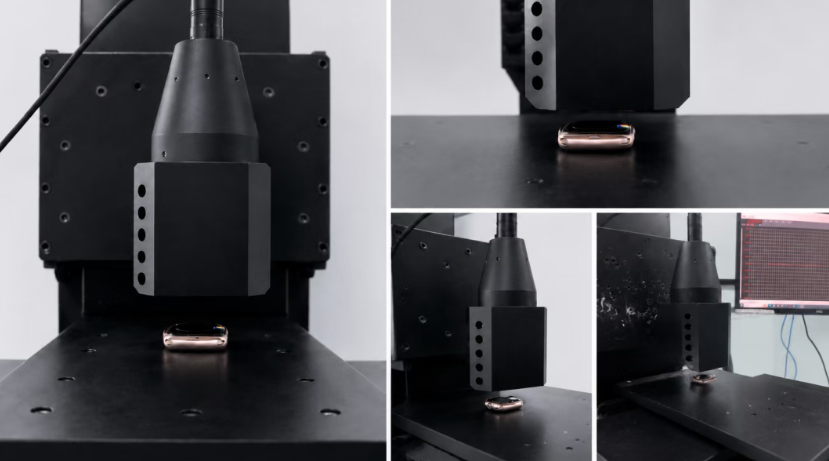

To address the challenges of complex 3D structures, the SinceVision SCI03560 confocal displacement sensor offers a complete, non-contact measurement solution. By scanning the back cover's surface at a constant speed, the sensor rapidly acquires a comprehensive topological map of the component.

Key Measurement Advantages for 3C Production

• Ultra-Fine Spot Size for Micro-Details (5.8μm): The sensor utilizes a highly focused 5.8μm light spot. This allows it to precisely capture microscopic structural features on curved surfaces that other sensors miss, such as subtle height variations, assembly steps, and machined grooves.

• High Angle Tolerance for Steep Curves (±60°): Traditional lasers struggle with reflective or highly curved surfaces due to signal loss. The SCI03560 features a wide measurable angle of ±60°. This ensures stable, uninterrupted measurement data even on the steep edges of watch cases and glass covers, maximizing the completeness of the inspection.

• Rapid Acquisition for In-Line Inspection (33kHz): Consumer electronics manufacturing operates on strict, fast-paced cycle times. With a high sampling frequency of 33kHz, the sensor captures thousands of data points per second. This enables manufacturers to complete full contour data acquisition for a single smartwatch back cover in a fraction of a second.

Driving Intelligent Quality Control

By deploying the SinceVision SCI03560 confocal displacement sensor, manufacturers can conduct continuous, high-precision inspections of a smartwatch's overall contour.

The system instantly identifies production anomalies such as localized height deviations, material warping, and surface deformations. This yields reliable, quantifiable data to ensure assembly consistency. Ultimately, this high-speed, non-contact inspection solution allows consumer electronics production lines to achieve fully automated, intelligent quality control with zero compromises on accuracy.

Frequently Asked Questions (FAQs)

Why is curved contour inspection difficult in consumer electronics?

Consumer electronics, like smartwatches, frequently use highly reflective materials (glass, polished metal, ceramics) combined with complex, steep geometries. Traditional contact probes are too slow and risk scratching the surface, while standard laser sensors often suffer from signal loss on steep angles or shiny finishes.

How does a confocal displacement sensor solve the angle limitation?

Confocal displacement sensors utilize a unique optical path that is highly sensitive to the specific wavelength of light returning through a pinhole. This design inherently tolerates highly scattered light, allowing the SinceVision SCI03560 to accurately measure surfaces tilted up to ±60° without losing precision.

Can this sensor be used for products other than smartwatches?

Yes. The technology is ideal for any consumer electronics application requiring high-precision non-contact measurement. Common applications include inspecting smartphone camera bump heights, curved display glass profiles, and VR/AR headset lens housings.
