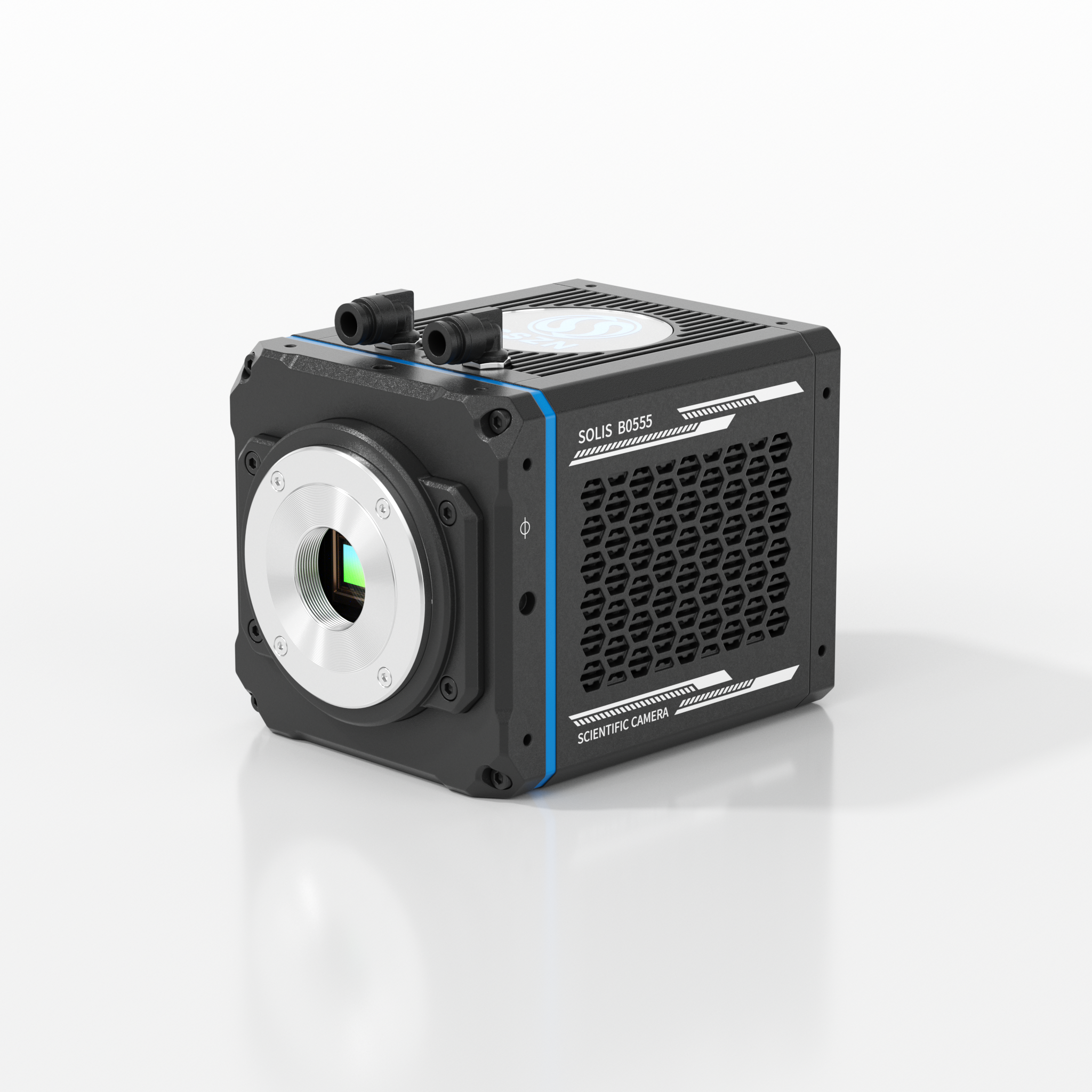

Solis B0555

Next-Gen Back-illuminated sCMOS

2560 × 2048 @ 240fps

Sub-electron Read Noise: As low as 0.6e- RMS

Ultra-low Dark Current: 0.002e-/pixel/s @ -30°C

Pixel Size: 5.5 μm

Cooling: -40°C (Delta 55°C) with Vacuum-sealed HTW Technology

Request a trial Join for comparison

Favorites Saved to favorites

  • Solis B0555

    • Product Specification
    Model Solis B0555
    Max. Resolution 2560x2048
    Full Frame Rate 240fps@Global，120fps@Rolling，45fps@USB3.1 fps
    Quantum Efficiency 95%@520nm
    Cell Size 5.5μm μm
    Diagonal size 18.05mm
    Readout Noise 0.6e- (RMS)
    Full Well Capacity 36Ke-@Rolling 50Ke-@Global
    Dark Current 0.002e-/pixel/s@-30℃；80e-/s @60℃
    DSNU 0.2e-
    PRNU 0.003
    Refrigeration method Active heat dissipation (air cooling/water cooling)
    Max. refrigeration temperature difference 55℃ below ambient temperature @ water cooling
    Sealing type High temperature weldingand vacuum sealing
    ROI Support
    Shutter type Rolling / Global Reset Release /Programmable scanning
    Bit Depth 12bit / 14bit / 16bit
    Color Monochrome (M)
    Dynamic range 92dB
    Trigger Mode Software/external (hardware)
    Optical interface C port
    Data interface USB 3.1 CoaXPress-over-Fiber
    Exposure time 4μs-60s
    Fan Control Support turning on/off multiple gear control
    Power Supply DC24V
    Typical Power(W) 90W
    Operating Temperature / Humidity 0℃~+40℃ less than 90%
    Storage Temperature / Humidity -20℃~+60℃ less than 90%
    Dimensions (excluding protrusion parts) 122Dx95Wx95H
    Weight(kg) 1.6
    Standard Accessories Power cord×1 USB data cable×1

    Data Download

    sCMOS-B0555 PRO_EN

    PDF / 992.85KB

    Product Specifications

    Download Now Add to Download List Share file link
