SE1-010K4
Product Introduction
Mainly applied in lithium battery edge-position correction, semiconductor, and industrial manufacturing, with a repeatability of 5 μm and a sampling period of 250 μs.

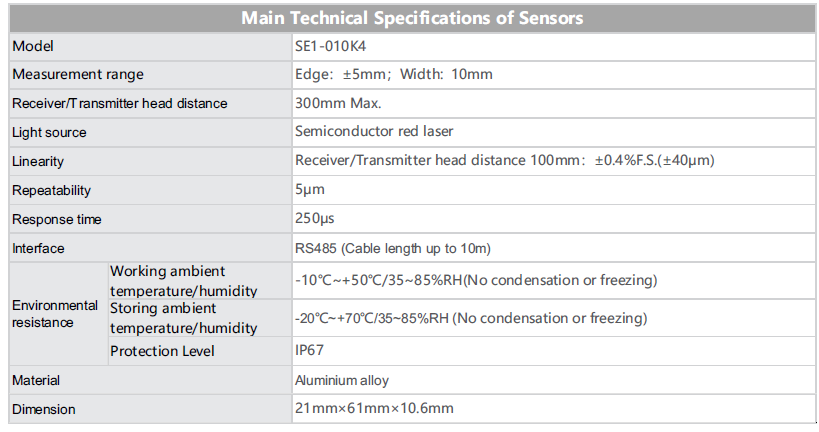

Technical specifications
| Model | SE1-010K4 |
| Measurement range | Edge: ±5mm; Width: 10mm |
| Receiver/Transmitter head distance | 300mm Max. |
| Light source | Semiconductor red laser |
| Linearity | Receiver/Transmitter head distance 100mm: ±0.4%F.S. (±40µm) |
| Repeatability | 5µm |
| Response time | 250µs |
| Interface | RS485 (Cable length up to 10m) |
| Environmental resistance - Working ambient temperature/humidity | -10℃～+50℃ / 35～85%RH (No condensation or freezing) |
| Environmental resistance - Storing ambient temperature/humidity | -20℃～+70℃ / 35～85%RH (No condensation or freezing) |
| Environmental resistance - Protection Level | IP67 |
| Material | Aluminium alloy |
| Dimension | 21mm × 61mm × 10.6mm |
| Controller main index | ||
| Model number | SEA-DM2-A/V | SEA-DM2 |
| Number of sensor head connections | Max. 2 pairs of sensor heads | Max. 2 pairs of sensor heads |
| Sensor head connection mode | M8 6-pin connector | M8 6-pin connector |
| Sensor head communication mode | RS-485 (maximum 20m cable) | RS-485 (maximum 20m cable) |
| Display measurement | TFT screen | TFT screen |
| Display light | Power indicator: Green; Output indicator: Red | Power indicator: Green; Output indicator: Red |
| I/O external input | 1 way (also valid for sensor head channel 1/ Channel 2) | |
| I/O switching output | 2 output PNP/NPN Optional open collector Max. 100mA/DC 24V Residual voltage less than 1.8V | |
| I/O analog output | 2 output analog current/voltage Optional, current: 4 ~ 20mA (maximum load 300Ω) or voltage: 0 ~ 10V (output resistance 100Ω) | |
| Protection Level | IP50 | IP50 |
| Operating environment Temperature/Humidity | -20 ° C to +50 ° C /35 to 85%RH (without condensation freezing) | -20 ° C to +50 ° C /35 to 85%RH (without condensation freezing) |
| Storage environment temperature/humidity | -20 ℃~+70 ℃/35~85% RH (without condensation or freezing) | -20 ℃~+70 ℃/35~85% RH (without condensation or freezing) |
| Installation | DIN rail installation setting | DIN rail installation setting |
| shell material | PC+ glass fiber | PC+ glass fiber |

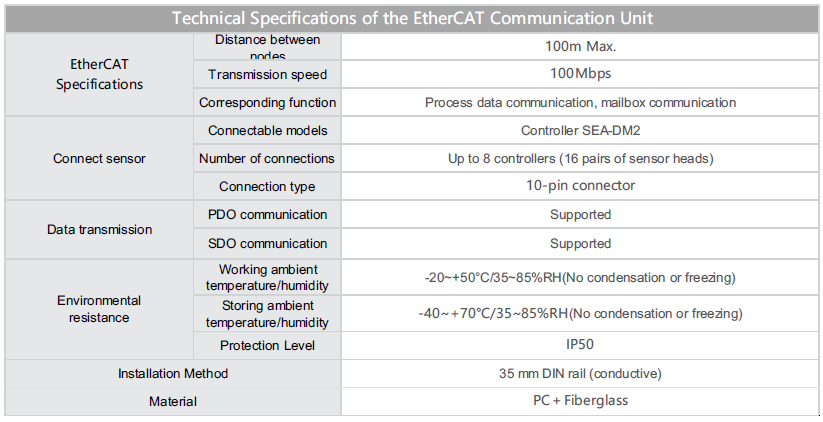

| EtherCAT Specifications | Distance between nodes | 100m Max. |
| Transmission speed | 100Mbps | |
| Corresponding function | Process data communication, mailbox communication | |
| Connect sensor | Connectable models | Controller SEA - DM2 |
| Number of connections | Up to 8 controllers (16 pairs of sensor heads) | |
| Connection type | 10 - pin connector | |
| Data transmission | PDO communication | Supported |
| SDO communication | Supported | |
| Environmental resistance | Working ambient temperature/humidity | -20~+50℃/35 - 85%RH(No condensation or freezing) |
| Storing ambient temperature/humidity | -40~ + 70℃/35 - 85%RH(No condensation or freezing) | |
| Protection Level | IP50 | |
| Installation Method | - | 35 mm DIN rail (conductive) |
| Material | - | PC + Fiberglass |
| Model description of the deviation correcting sensor | |
| Transmitting sensing head | SE1-010K4-T |
| Receiving sensor head | SE1-010K4-R |
| controller | SEA-DM2-A/V; SEA-DM2 |
| EtherCAT Universal Communication module | SU1-EC |
| 2m long Y-shaped cable | SCB-EY-HA3-2m |
| 5m long Y-shaped cable | SCB-EY-HA3-5m |
| 5m long extension cable | SCB-EF-HA3-5m |
