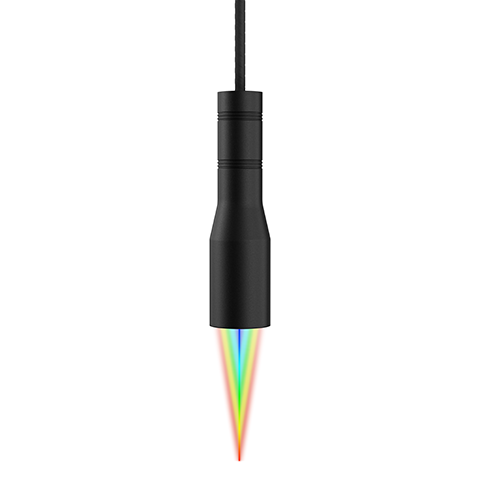

SCI04025 Universal
Product Introduction
Sampling frequency up to 33kHz for stable detection
of fast-moving objects and high-frequency vibration amplitude
Technical specifications
Parameter/Model | SCI04025 | |
Controller① | SCI501A/SCI502A/SCI501B/SCI502B | |
Fixturemodel | SCI-01 | |
Beamdiameter (spotsize) | 12μm | 25.2μm |
Workingdistance | 16mm | |
Measurement range | 4mm | |
Axialresolution ② | 0.006μm | |
Straightness | ±0.8μm | |
Angle range | ±25° | |
Minimumthicknessof measurabletransparentobjects | 130μm | |
Diameter | 30mm | |
Length | 114mm | |
Weight | 95g | |
