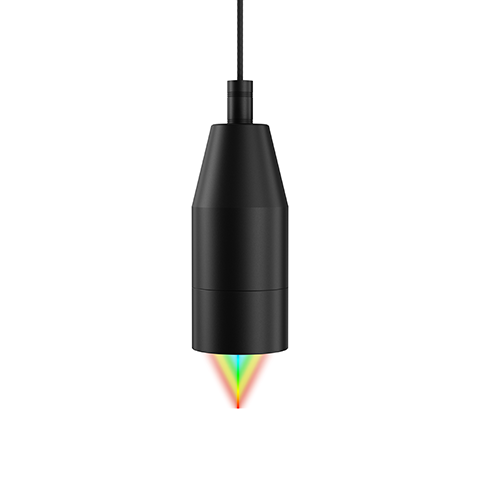

SCI03560 Wide Angle

Product Introduction

Spot size: 5.8 μm / 12.2 μm

Working distance: 12.8 mm

Linearity: ±0.7 μm

Angular characteristics: ±60°

Minimum measurable transparent object thickness: 150 μm



Contact Now price

Technical specifications

Parameter/Model

SCI03560

Controller

SCI501A/SCI502A/SCI501B/SCI502B

Fixturemodel

SCI-02

Beamdiameter

(spotsize)

5.8μm

12.2μm

Workingdistance

12.8mm

Measurement  range

3.5mm

Axialresolution

0.006μm

Straightness

±0.7μm

Angle range

±60°

Minimumthicknessof

measurabletransparentobjects

150μm

Diameter

83mm

Length

229mm

Weight

2300g
