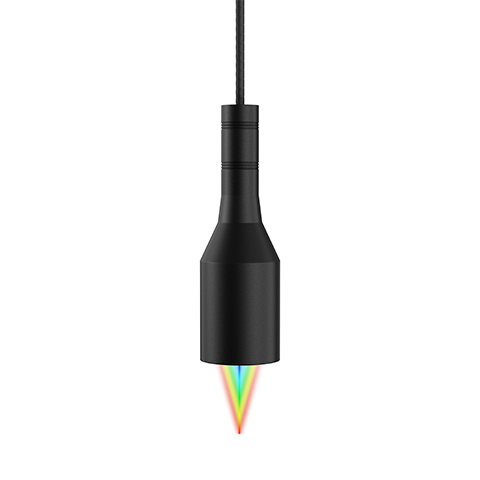

SCI01045 High Precision
Product Introduction
Sampling frequency up to 33kHz for stable detection
of fast-moving objects and high-frequency vibration amplitude
Technical specifications
Parameter/Model | SCI01045 | |
Controller① | SCI501A/SCI502A/SCI501B/SCI502B | |
Fixturemodel | SCI-01 | |
Beamdiameter (spotsize) | 7.1μm | 14.9μm |
Workingdistance | 10mm | |
Measurement range | 1mm | |
Axialresolution ② | 0.006um | |
Straightness | ±0.2um | |
Angle range | ±45° | |
Minimumthicknessof measurabletransparentobjects | 30μm | |
Diameter | 47mm | |
Length | 148.6mm | |
Weight | 350g | |
