Glue Detection for LiDAR Frame Assembly

Purpose:

Ensure stable LiDAR frame assembly by detecting and preventing issues such as missing glue or insufficient adhesive application that can lead to weak or unstable connections.

Detection Item:

High-precision multi-position glue height measurement with 0.01 mm accuracy for reliable adhesive quality control in LiDAR frame production.

Solution:

The SRI7080 high-precision 3D laser profiling system enables stable and accurate glue inspection in high-speed production environments.

• Maximum static repeatability of scanning height difference: 0.0081 mm

• Depth of field: 17.7 mm

• Scanning frequency: 3500 Hz

• Scanning speed: 56 mm/s

• Complete inspection cycle time (CT): approximately 5 seconds




This performance ensures fast, stable, and full-coverage glue detection, fully meeting industrial production requirements for LiDAR frame quality inspection.

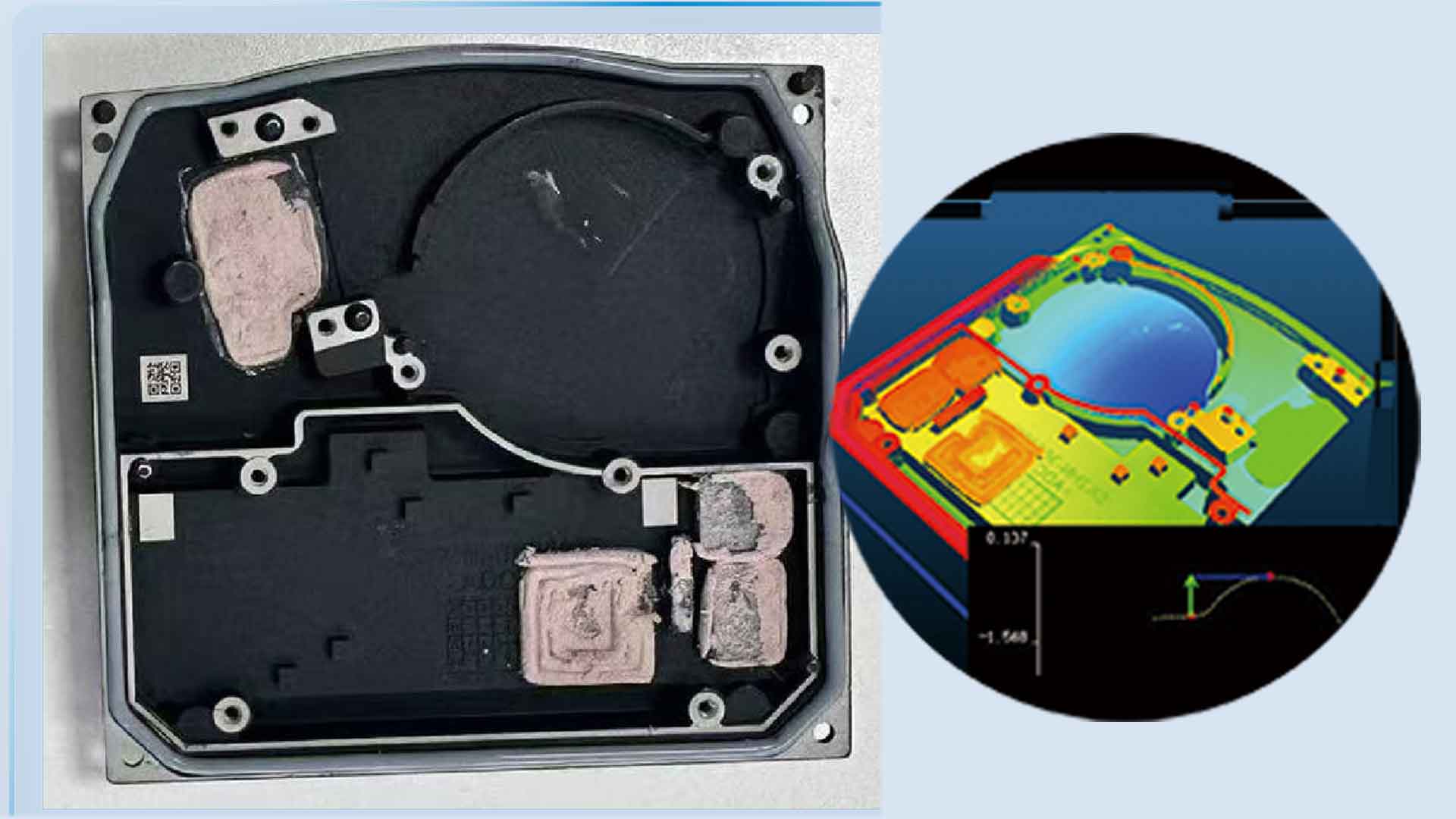

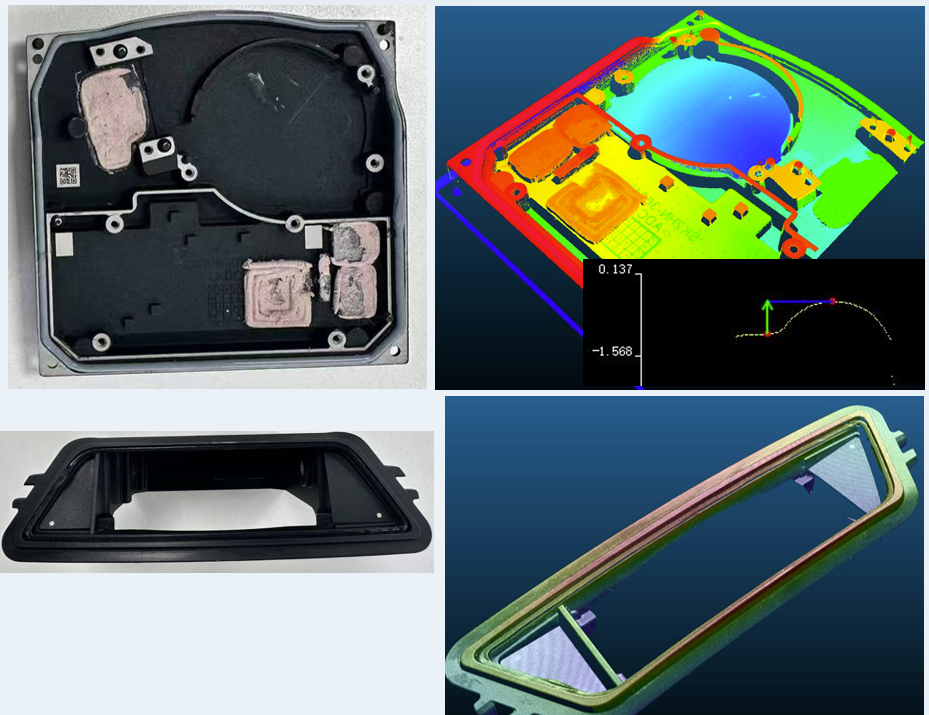

Image: Glue Detection for LiDAR Frame Assembly

Advantages:

1. Combines large field of view (FOV) with ultra-high precision measurement

2. Clear and stable glue imaging for accurate defect detection

3. Supports high-speed inline inspection for production efficiency

4. Enhances consistency in LiDAR frame adhesive quality control
