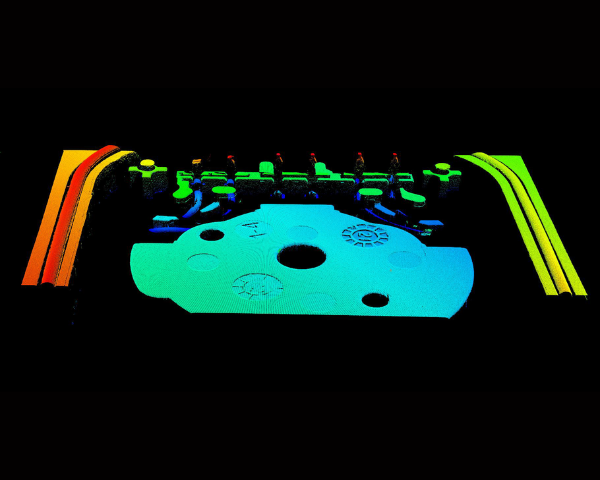

IDC Press-Fit PIN Height Detection with SinceVision 3D Laser Profiler
Industry pain points and demands
In automotive electronic manufacturing, IDC press-fit PINs must meet strict height requirements to ensure proper connections. Variations in PIN height can lead to faulty electrical connections, impacting the performance and reliability of critical automotive systems.
SinceVision Solution: SR7140 3D Laser Profiler
01Ultra-High Precision: Achieves repeatability of 0.03MM for reliable height measurements.
02Real-Time Detection: Efficiently identifies PIN height differences to prevent defects.
03Versatile Application: Supports inspection of complex press-fit PIN structures.
Camera Selection
| Model number | SR7140 | |||
| Reference distance (CD) | 140mm | |||
| Measuring range | Z-axis height (FS) | 24mm | ||
| X-axis width | Near side | 89mm | ||
| Reference distance | 95mm | |||
| Remote side | 96mm | |||
| Light source | Light source wavelength | 405nm blue light | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 0.5μm | ||
| X-axis (width) | 8μm | |||
| linearity | Z-axis (height) | ±0.05% F.S. | ||
| Contour data interval | X-axis (width) | 30μm | ||
| X-axis contour points | 3200 | |||
| Reflection Angle (°) | 28 | |||
| Scanning speed (Hz) | 2500 ~ 10000 | |||
| Dimension (mm) | 143×93.2×48.3 | |||
| Weight (g) | 730 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential coders are supported | |||
| Input/output | 1 RS232 interface, 1 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working Humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs（10-500Hz）符合 IEC 68-2-6 Fc标准标准 | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
