AIR-501
Product Introduction

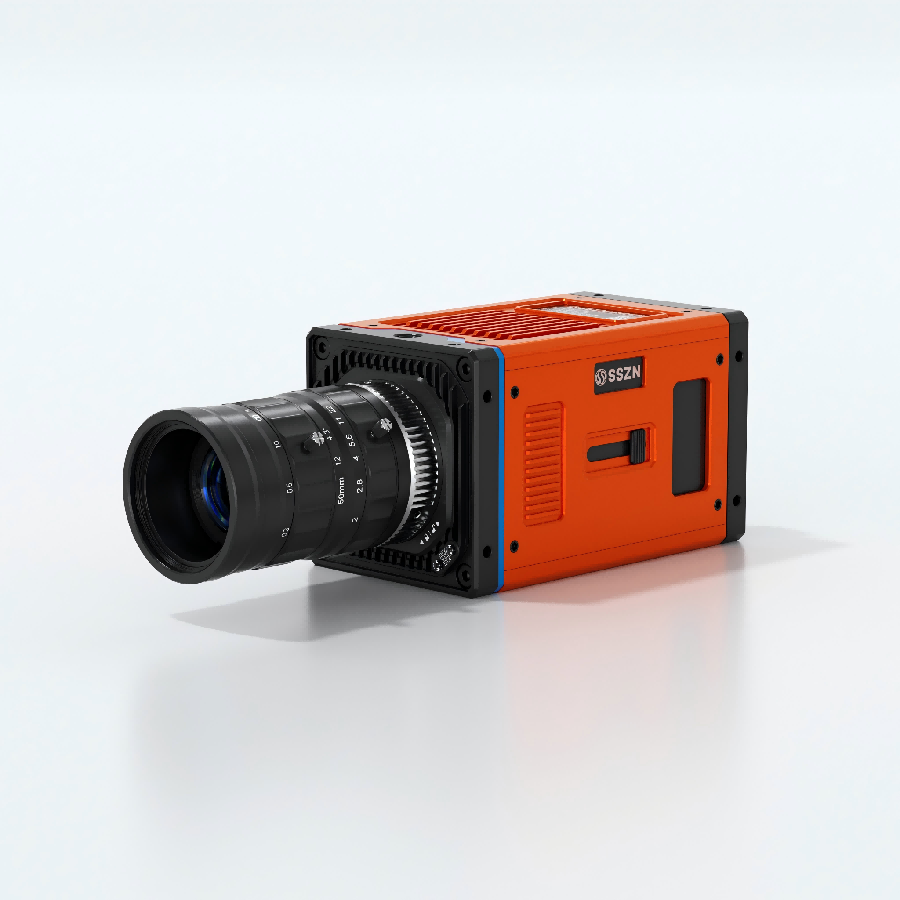

AIR series is a high-definition high-speed camera launched by SinceVision for the fields of national defense and scientific research. The new Stitching-BSl image sensor technology is adopted to achieve 95% visible light and 50% ultraviolet quantum efficiency, which is far beyond the conventional level of this industry. Combined with high dynamic and low noise design, the image retains more detailed features.
Download related documents
Contact Now
price
Technical specifications
| Max. Resolution 2560x2048 | Shutter Global shutter |
| Full Frame Rate 1000fps | Color Monochrome (M)/ Color (C) |
| Max. Frame Rate 18000fps | ROI Suppor |
| Min. Exposure Time 1μs | Recording Mode Start, End, Center, Random, Manual |
| Cell Size 5.5μm | Dimensions (excluding lens) 120D×72W×72H， excluding protrusion parts |
| Standard RAM 32GB, 64GB | Weight 1.4kg (Including built-in battery) |
| Extended Memory (CF Card) 1TB | Lens Mount C Port (with a lock) |
| Dynamic Range 62dB | Power Consumption DC24V,<25W |
| Analog Gain ×2, ×4, ×8 | Batter Ni–MH battery (Optional) |
| Bit Depth 8bit/10bit/12bit | Operating Temperature Standard -10~50℃, below 95%(no condensation), customizable -40~70℃ wide temperature range version |
Vibration resistance W0 : 0.08g2/Hz. 20 minutes for each axis in X, Y and Z direction | EMC Comply with CE102, RE102, CS101, CS114, RS103 of the standard GJB 151B-2013 |
