Technical specifications

Model number			SR8060K
Reference distance (CD)			60mm
Measuring range	Z-axis height (FS)		18mm
	X-axis width	Near side	20mm
		Reference distance	20mm
		Remote side	20mm
Light source	Light source wavelength		405nm blue light
	Laser class		2M
	Laser output power		10mW
Repetition accuracy	Z-axis (height)		0.2μm
	X-axis (width)		5μm
linearity	Z-axis (height)		±0.02% of F.S.
Contour data interval	X-axis (width)		12μm
X-axis contour points			3200
Reflection Angle (°)			33
Scanning speed (Hz)			3200 ~ 67000
Dimension (mm)			123.5×84×55. 2
Weight (g)			650
Temperature characteristic			0.02% F.S./℃
Encoder input			Single-ended, differential encoder is supported
Input/output			One 100Base-TX/1000Base-T Ethernet interface
Operation Temperature			0～50℃
Storage Temperature			-20～70℃
Working Humidity			35% to 85% without condensation
ESD Protection			Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards
EFT protection			Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards
Impact			50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard
Vibration			10Gs (10-500Hz), compliant with IEC 68-2-6 Fc standard
degrees of protection provided by enclosure			IP67, in accordance with IEC 60529 standard

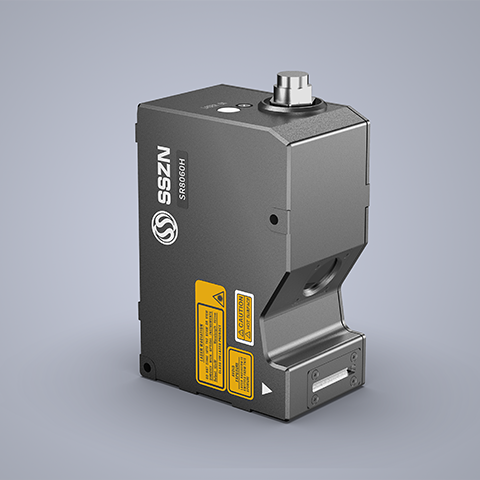

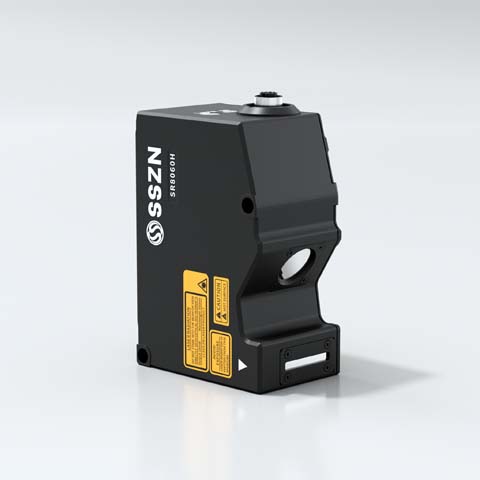

SR8060H
