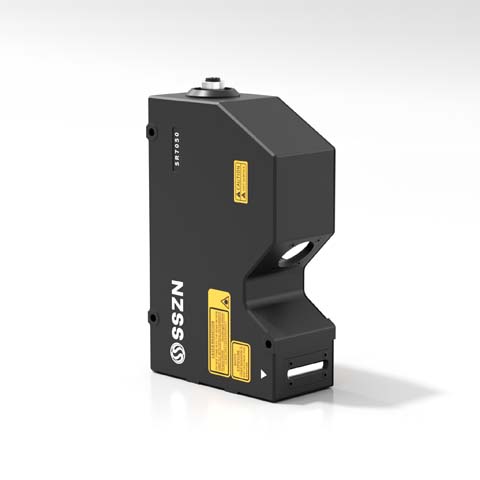

SR7050
Product Introduction
·X-axis width: 30-31.5mm
·Scanning speed: 2500~10000Hz
·Z-axis linearity: ± 0.05% F.S
·Light source wavelength: 405nm
·Laser grade: 2M
Download related documents
Contact Now
price
Technical specifications
| Model | SR7050 |
| Reference distance (CD) | 50mm |
| Measuring range - Z-axis height (FS) | 5mm |
| Measuring range - X-axis width - Near-end | 30mm |
| Measuring range - X-axis width - Reference distance | 30.5mm |
| Measuring range - X-axis width - Far-end | 31.5mm |
| Light source - Light source wavelength | 405nm |
| Light source - Laser class | 2M |
| Light source - Laser output power | 10mW |
| Repeatability - Z axis (height) | 0.2um |
| Repeatability - X-axis (width) | 2.5um |
| Linear - Z axis (height) | ±0.05% of FS |
| Contour data interval - X-axis (width) | 10um |
| X-axis contour points | 3200 |
| Scanning speed (Hz) | 2500-10000 |
| Temperature characteristics | 0.02% of F.S./°C |
| I/O interface | 8 programmable input interfaces, 8 programmable output interfaces |
| Encoder interface | Single-ended and differential encoder each |
| I/O | 1 RS232 interface, 1 100Base-TX/1000Base-T Ethernet interface |
| Operating temperature | 0-45°C |
| Storage temperature | -20-70°C |
| Working humidity | 35%-85% without condensation |
| ESD protection | Contact discharge 4kV, air discharge 8kV, conforms with IEC61000-4-2 |
| EFT Protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, conforms with IEC61000-4-4 |
| Impact | 50Gs/3ms per axis, conforms with IEC 68-2-27 Ea |
| Vibration | 10Gs (10-500Hz), conforms with IEC 68-2-6 Fc |
| IP rating | IP67, conforms with IEC 60529 |
| Dimensions (mm) | 160x98x48 |
| Data cable (wiring) model | SCB-HCAM-HB1-3m, SCB-HCAM-HB1-10m |
| Weight | 750g |
