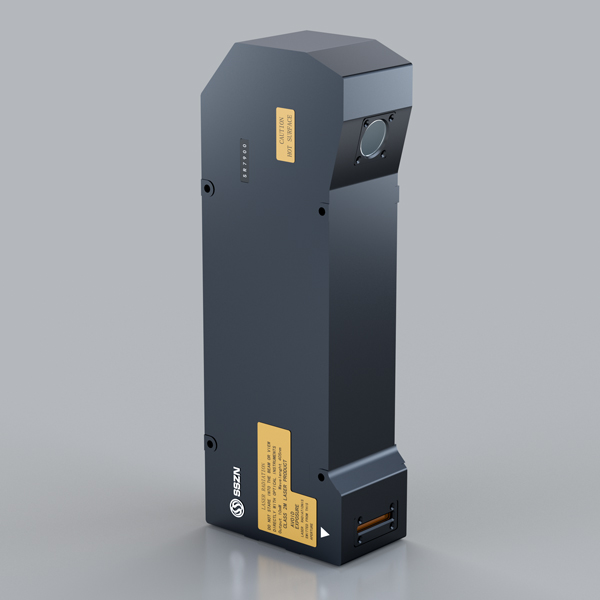

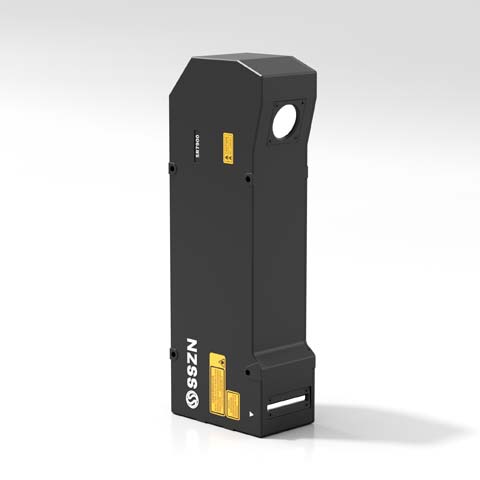

Product Introduction

·X-axis width: 359-576mm

·Scanning speed: 1000-4500Hz

·Z-axis linearity: ± 0.05% F.S

·Light source wavelength: 450nm

·Laser grade: 3R


Download related documents
Contact Now price

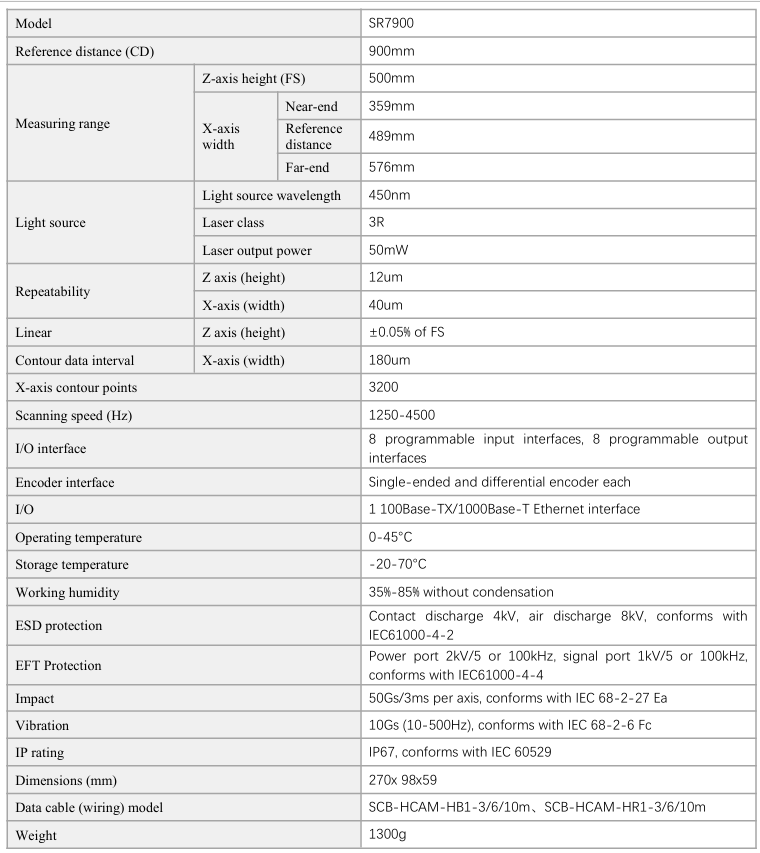

Technical specifications

ModelSR7900
Reference distance (CD)900mm
Measuring range - Z-axis height (FS)500mm
Measuring range - X-axis width - Near-end359mm
Measuring range - X-axis width - Reference distance489mm
Measuring range - X-axis width - Far-end576mm
Light source - Light source wavelength450nm
Light source - Laser class3R
Light source - Laser output power50mW
Repeatability - Z axis (height)12um
Repeatability - X-axis (width)40um
Linear - Z axis (height)±0.05% of FS
Contour data interval - X-axis (width)180um
X-axis contour points3200
Scanning speed (Hz)1250 - 4500
I/O interface8 programmable input interfaces, 8 programmable output interfaces
Encoder interfaceSingle - ended and differential encoder each
I/O1 100Base - TX/1000Base - T Ethernet interface
Operating temperature0 - 45°C
Storage temperature-20 - 70°C
Working humidity35% - 85% without condensation
ESD protectionContact discharge 4kV, air discharge 8kV, conforms with IEC61000 - 4 - 2
EFT ProtectionPower port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, conforms with IEC61000 - 4 - 4
Impact50Gs/3ms per axis, conforms with IEC 68 - 2 - 27 Ea
Vibration10Gs (10 - 500Hz), conforms with IEC 68 - 2 - 6 Fc
IP ratingIP67, conforms with IEC 60529
Dimensions (mm)270x98x59
Data cable (wiring) modelSCB - HCAM - HB1 - 3/6/10m, SCB - HCAM - HR1 - 3/6/10m
Weight1300g
