Observe Fluid Flow in Microfluidic Chips with High-Speed Camera
Industry pain points and demands
In microfluidic experiments, capturing quick and subtle fluid behaviors is tough. This includes droplet deformation, splitting, or merging in tiny microchannels.
Traditional imaging tools are slow and lack resolution. This makes it hard to see quick, tiny events. Analyzing key factors like interfacial tension, flow velocity, and channel design is hard.
SinceVision Solutions: SH3-108 High-Speed Camera

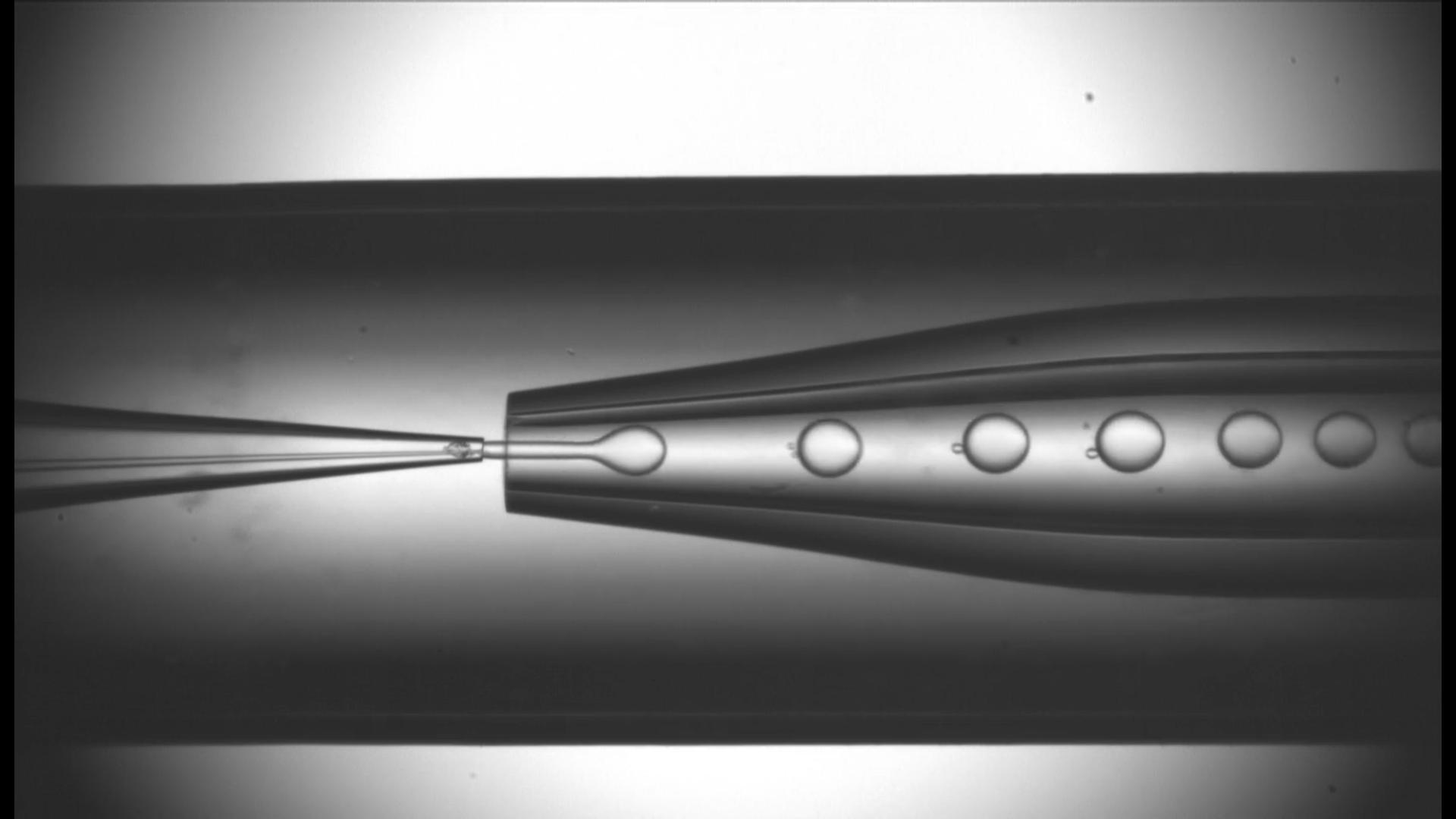

01Ultra-Fast Imaging at 8000 FPS: Enables real-time visualization of fast-moving droplets and fluid boundaries with unmatched clarity.
02High Resolution (1280×1024): Clearly records fluid dynamics and small-scale structural changes within microchannels.
03Micron-Level Spatial Resolution (with Microscopy): Supports advanced research in biomedicine, chemistry, and materials science by revealing physical mechanisms in microfluidic systems.
Camera Selection
| Performance | |||||||
| resolution | Frame rate | Record time (memory) | Record time (hard disk) | ||||
| 16GB | 32GB | 64GB | 1TB | 2TB | 4TB | ||
| 1280 x 1024 | 8000FPS | 1.6 s | 3.2 s | 6.4 s | 102s | 204s | 408s |
| 1280 x 800 | 1000FPS | 1.6 s | 3.2 s | 6.4 s | 102s | 204s | 408s |
| 1280 x 512 | 16000FPS | 1.6 s | 3.2 s | 6.4 s | 102s | 204s | 408s |
| 1280 x 256 | 32000FPS | 1.6 s | 3.2 s | 6.4 s | 102s | 204s | 408s |
| 1280×128 | 64000FPS | 1.6s | 3.2s | 6.4s | 102s | 204s | 408s |
| 1280×8 | 550000FPS | 3s | 6s | 12s | 192s | 384s | 768s |
| specification | |||
| Model number | TYPE | SH3-108 | |
| Maximum resolution | Full Resolution | 1280 x 1024 | |
| Full shot speed | Full Frame Rate | 8000fps | |
| Maximum shooting speed | Maximum Frame Rate | 550000fp | |
| Minimum exposure time | Minimum Exposure Time | 1μs, customized for 100 NS | |
| Pixel size | Pixel Size | 14.6μm | |
| Standard memory | Standard RAM | 16G, 32G, and 64G are optional | |
| Extended memory | Extended Memor | 1T, 2T, and 4T are optional | |
| Dynamic range | Dynamic Range | 60dB | |
| Analog gain | Analog Gain | X 2, x 4, x 8 | |
| Bit depth | Bit Resolution | 8bit | |
| Shutte Mode | Shutte Mode | Global shutter | |
| Color | Color | Monochrome (M)/Colorful (C) | |
| ROI | ROI | Support | |
| Lens Mount | Lens Mount | E interface, can be connected to F interface, C interface, EF interface | |
| Data Interface | Data Interface | 10 Gigabit Ethernet, Adaptive Gigabit Ethernet | |
| Sensitivity | Sensitivity | ISO56000(M)；ISO21000(C) | |
| Fan Control | Fan Control | Supports on/off, adaptive speed based on temperature | |
| Operating Temperature/Humidity | Operating Temperature/Humidity | Standard -10~50 ℃, below 95% (without condensation), customizable -35~65 ℃ wide temperature version | |
| Video Signal Output | Video Signal Output | Ethernet | |
| Recording Mode | Recording Mode | Start, End, Center, Random, Manual | |
| Trigger Mode | Trigger Mode | Manual, IO, Image | |
| External Signal | External Signal | Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIG Output: trigger, synchronization signal, ready signal | |
| Power Supply | Power Supply | DC24V | |
| Dimensions (excluding lens) | Dimensions (excluding lens) | 90D × 110W × 110H, excluding raised parts | |
| Weight | Weight | ＜1.6kg | |
| Power Consumption | Power Consumption | ＜30W | |
| Standard Accessories | Standard Accessories | Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one | |
