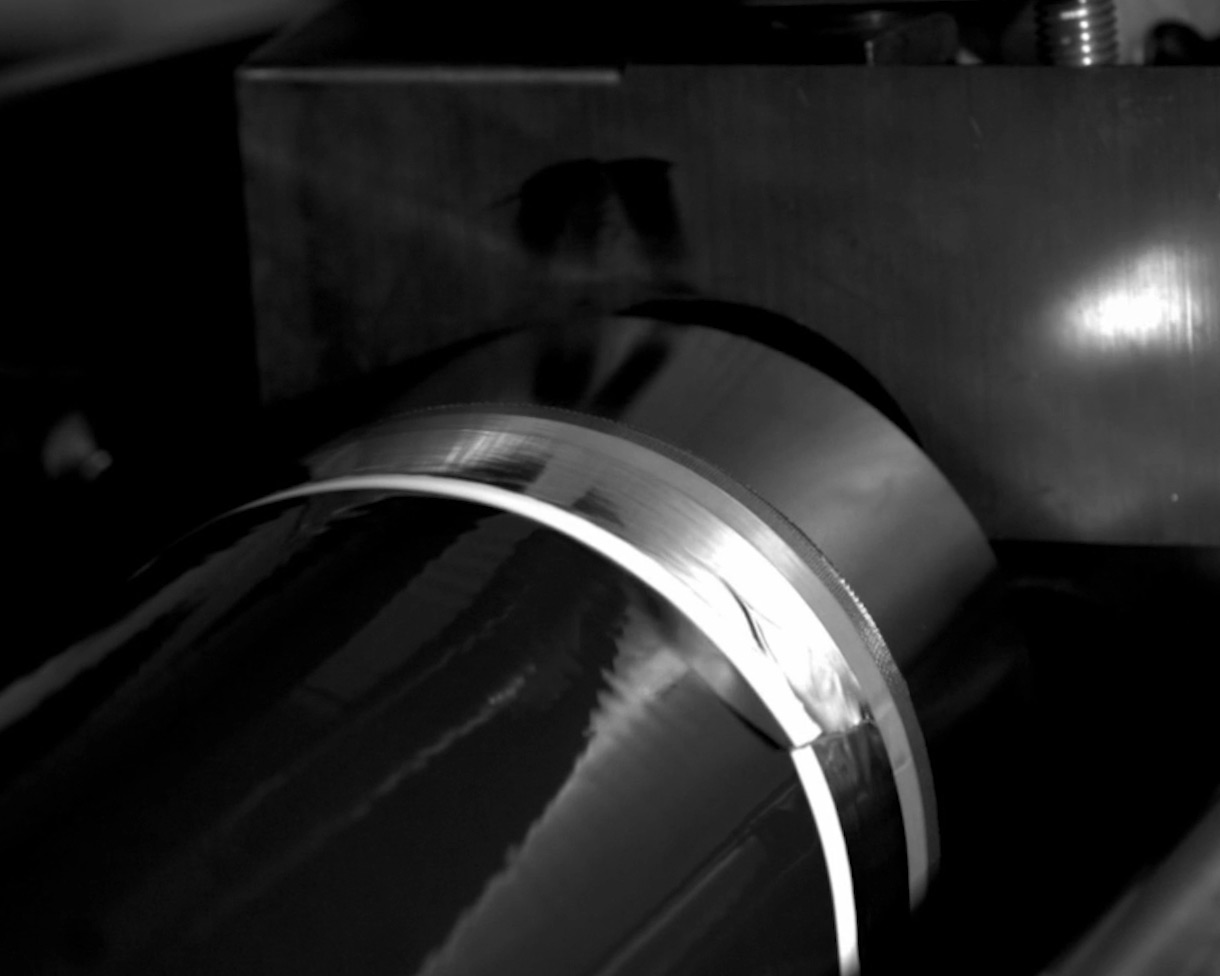

Lithium Battery Cell Winding Faults Captured by High-Speed Camera
Industry pain points and demands
Fault analysis during lithium battery cell winding is often hindered by:
· Data Overload: Excessive data collection makes pinpointing faults time-consuming.
· Inefficiency: Manual sifting through vast datasets delays fault resolution.
· Missed Insights: Lack of precision tools results in incomplete fault tracking and analysis.
SinceVision’s SH6-502 High-Speed Camera is designed to address the challenges of fault analysis in lithium battery cell winding, the SH6-502 enables precise, efficient, and reliable fault detection.
SinceVision Solution: SH6-502 High-Speed Camera
01Ultra-High Resolution and Speed: Delivers 2560×2016 resolution at 2000fps for detailed, high-definition fault analysis.
02Accurate Fault Tracking: Millisecond-level time precision and trajectory tracking algorithms ensure pinpoint accuracy.
03Efficient Monitoring: Pre-save functionality and large-capacity storage secure critical data and eliminate delays caused by alarm triggers.
Camera Selection
| performance | |||||||
| resolution | Frame rate | Record time (memory) | Record time (hard disk) | ||||
| 40GB | 80GB | 160GB | 4TB | 12TB | 20TB | ||
| 2560 x 2016 | 2000FPS | 4.1 (s) | 8.2 (s) | 16.4 (s) | 13 (min) | 39 (min) | 65 (min) |
| 2560 x 1280 | 3000FPS | 4.1 (s) | 8.2 (s) | 16.4 (s) | 13 (min) | 39 (min) | 65 (min) |
| 2560 x 1024 | 4000FPS | 4.1 (s) | 8.2 (s) | 16.4 (s) | 13 (min) | 39 (min) | 65 (min) |
| 2560 x 512 | 5600FPS | 5.8 (s) | 11.6 (s) | 23.2 (s) | 19 (min) | 57 (min) | 95 (min) |
| 2560×256 | 9000FPS | 7.2 (s) | 14.4 (s) | 28.8 (s) | 24 (min) | 72 (min) | 120 (min) |
| 2560×128 | 12000FPS | 10.8 (s) | 21.6 (s) | 43.2 (s) | 36 (min) | 108 (min) | 180 (min) |
| 2560×32 | 25000FPS | 21 (s) | 42 (s) | 84 (s) | 70 (min) | 210 (min) | 350 (min) |
| specification | |||
| Model number | TYPE | SH6-502 | |
| Maximum resolution | Full Resolution | 2560 x 2016 | |
| Full shot speed | Full Frame Rate | 2000fps | |
| Maximum shooting speed | Maximum Frame Rate | 25000fp | |
| Minimum exposure time | Minimum Exposure Time | 1 mu s | |
| Pixel size | Pixel Size | 9 microns | |
| Standard memory | Standard RAM | 40 GB, 80 GB, and 160 GB are optional | |
| Extended memory | Extended Memor | 4T, 12T, and 20T are optional | |
| Dynamic range | Dynamic Range | 60dB | |
| Analog Gain | Analog Gain | ×2、×4、×8 | |
| Bit Resolution | Bit Resolution | 8bit/10bit/12bit | |
| Shutte Mode | Shutte Mode | Global shutter | |
| Color | Color | Monochrome (M)/Colorful (C) | |
| ROI | ROI | Support | |
| Lens Mount | Lens Mount | E interface, can be connected to F interface, C interface, EF interface | |
| Data Interface | Data Interface | 10 Gigabit Ethernet, Adaptive Gigabit Ethernet | |
| Sensitivity | Sensitivity | ISO10000(M)；ISO3000(C) | |
| Fan Control | Fan Control | Supports on/off, adaptive speed based on temperature | |
| Operating Temperature/Humidity | Operating Temperature/Humidity | Standard -10~50 ℃, below 95% (without condensation), customizable -35~65 ℃ wide temperature version | |
| Video Signal Output | Video Signal Output | SDI, Ethernet | |
| Recording Mode | Recording Mode | Start, End, Center, Random, Manual | |
| Trigger Mode | Trigger Mode | Manual, IO, Image | |
| External Signal | External Signal | Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIGB code signal Output: trigger (TTL/switch) signal, synchronization signal, ready signal, exposure signal, recording signal | |
| Power Supply | Power Supply | Dual power supply, DC24V | |
| Dimensions (excluding lens) | Dimensions (excluding lens) | 217D × 110W × 110H, excluding raised parts | |
| Weight | Weight | 3.8kg | |
| Power Consumption | Power Consumption | 55W | |
| Standard Accessories | Standard Accessories | Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one | |
