Winding Machine Label Recognition in Packaging and Printing Industry with SinceVision Color Sensor
Accurate label positioning is critical for ensuring product quality and aesthetic appeal in the Packaging and Printing Industry.
· Misaligned Labels: Improper label placement can reduce brand value and increase waste.
· Environmental Variables: Variations in light, dust, or surface properties can disrupt detection.
· High-Speed Operations: Fast production lines require sensors capable of precise, real-time adjustments.

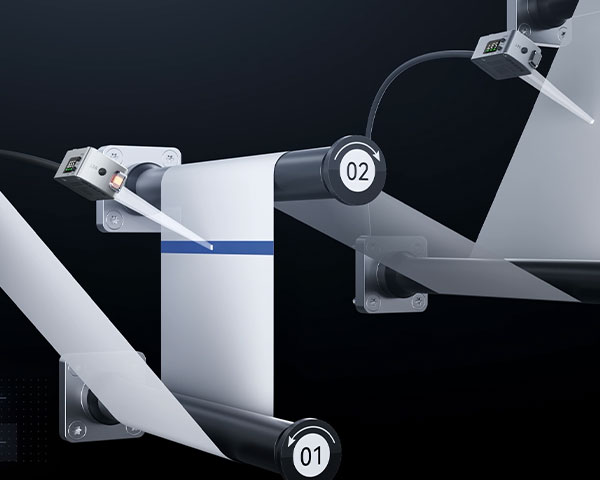

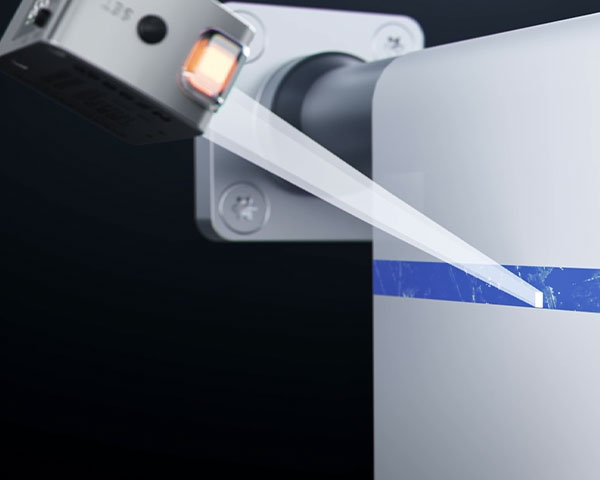

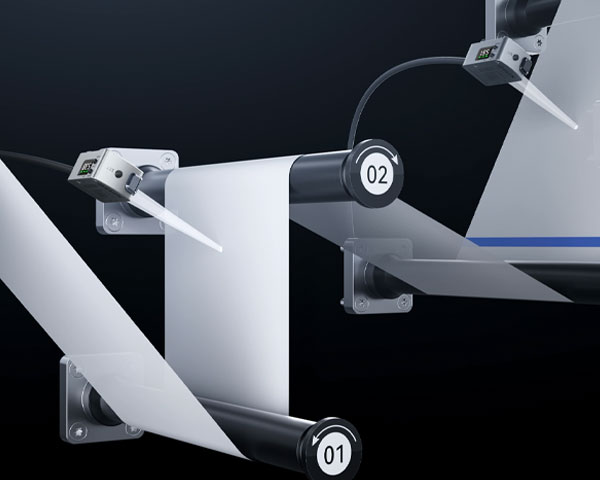

Physical Picture or Imaging Effect Picture
SinceVision Solution: Color Sensor SS1 Series
Camera Selection
| specification | |||
| Model | SS1-70K5-2M（with cable） | ||
| Measured range | 30-70mm | ||
| Minimum spot size | 4.5 mm×4.5 mm，Measurement range 50mm | ||
| Response time | 200 μs/500 μs/1 ms/10 ms/100 ms/ 500 ms, Switchable | ||
| Light source | White LED | ||
| Interference reduction | Set different frequencies. Support two sets | ||
| Timer | Off/Switch on Delay/Switch off Delay / Single time | ||
| Communication methods | IO、RS485 | ||
| Power supply | Voltage | 10~30 VDC ,including±10% ripple (P-P),class 2 or LPS | |
| Current | ≤60 mA, 24 VDC (without load) <110 mA, 12 VDC (without load) | ||
| I/O | Control output | PNP/NPN Open Collector, switchable N.0./N.C.switchable | |
| External input | Calibration/stop lighting, switchable Short circuit current: NPN:≤ímA / PNP:≤2 mA | ||
| Protection circuit | Power reversed connection protection, power surge protection, output overcurrent protection, output surge protection, output reversed connection protection | ||
Environmental resistance | Waterproof | IP67 | |
| Ambient light | Incandescent light: s10000 lx; Sunlight: s20000 lx | ||
| Ambient humidity | -20〜+50℃（No freezing） | ||
| Relative humidity | 35〜85%RH（No condensation） | ||
| Shock resistance | 1000m/s 2 ,6 times each in X, Y, and Z directions | ||
| Vibration resistance | 10~55Hz,1.5mm double amplitude for 2 hours each in X, Y, and Z directions | ||
| Materials | Shell: Aluminum alloy, with surface free of copper, nickel, and zinc | ||
| LED Indicator cover:PC/PMMA | |||
| Button:PC+ABS | |||
| Lens cover: glass; Display cover plate: PMMA with coating to prevent damage | |||
Cable: PVC, load temperature 30-50 'C, high voltage test 300V (AC) leakage current not exceeding 2mA, insulation test 300V (DC) insulation resistance not less than 20M Q, with shielding (maximum length:10 meters) | |||
| Weight: 107g, including cables | |||
