Plate Size and Surface Inspection with SinceVision 3D Laser Profiler
Industry pain points and demands
Accurately inspecting the size and surface of plates is essential to ensure uniformity and quality in the food and packaging industry. Variations in plate dimensions or surface defects, such as scratches, dents, or irregular finishes, can compromise functionality and customer satisfaction. Traditional inspection methods often fall short in addressing the precision and speed required for modern production lines.
Physical Picture or Imaging Effect Picture

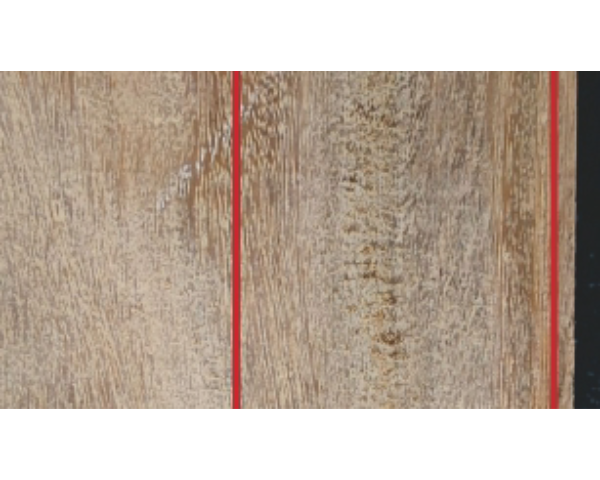

Physical picture

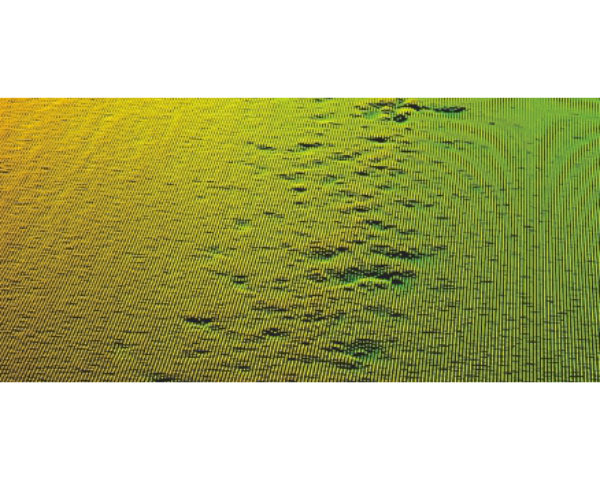

Imaging effect picture
SinceVision Solution: SR7400 3D Laser Profiler
01Accurate Dimensional Inspection: Measures plate dimensions with precision, ensuring consistent size and adherence to standards.
02Surface Defect Detection: Identifies surface irregularities like scratches, dents, or uneven finishes, enhancing product quality.
03High-Speed Operation: Performs non-contact inspections efficiently, maintaining production line throughput without compromising accuracy.
Camera Selection
| Model number | SR7400 | |||
| Reference distance (CD) | 400mm | |||
| Measuring range | Z-axis height (FS) | 200mm | ||
| X-axis width | Near side | 180mm | ||
| Reference distance | 220mm | |||
| Distal end | 280mm | |||
| Light source | Light source wavelength | 405nm blue light | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 5μm | ||
| X-axis (width) | 20μm | |||
| linearity | Z-axis (height) | ±0.05% F.S. | ||
| Contour data interval | X-axis (width) | 90μm | ||
| X-axis contour points | 3200 | |||
| Reflection Angle (°) | 17 | |||
| Scanning speed (Hz) | 2500 ~ 8000 | |||
| Dimension (mm) | 189.5×93×48 | |||
| Weight (g) | 840 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential coders are supported | |||
| Input/output | One 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working Humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs（10-500Hz）符合 IEC 68-2-6 Fc标准标准 | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
