Vision-Guided Laser Marking with SinceVision Laser Displacement Sensors
Industry pain points and demands
In industries such as aerospace, electronics, automotive, medical, and home appliances, laser marking requires exceptional precision to handle variations in workpiece size, shape, and position. Without real-time adjustment, these inconsistencies can lead to suboptimal results, including blurry markings and inconsistent depths.

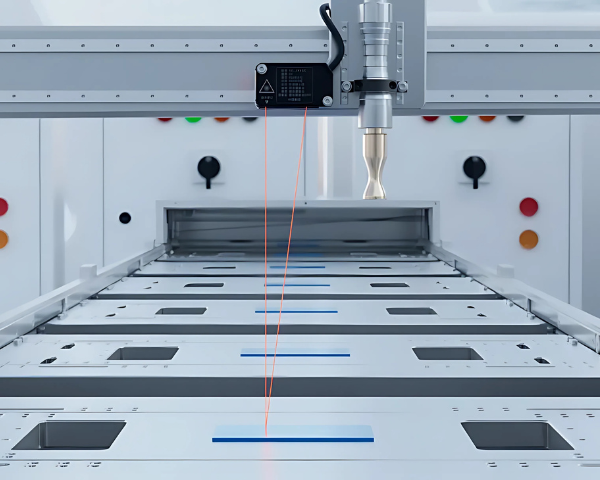

SinceVision Solution: SD-C400 Laser Displacement Sensor
01Precise Detection and High Accuracy: Detects displacements and depth changes with a ±200mm range and 0.15mm repeat accuracy, ensuring marking precision.
02Real-Time Focus Adjustment: Automatically adjusts laser focal length to maintain consistent focus, accommodating variations in workpiece surfaces.
03Compact Design with Versatility: Features a small footprint (44.4×25×20mm) and high sampling frequency of up to 1kHz, seamlessly integrating into diverse marking systems.
Camera Selection
| Model number | SD-C400 | ||
| Reference distance (CD) | 400mm | ||
| Measuring range | ±200mm | ||
| Light source | Light source wavelength | 655nm | |
| Laser class | Class 2 | ||
| Laser output power | 1mW | ||
| Spot diameter (spot size) | Near side | 500×430μm | |
| Reference distance | 800×380μm | ||
| Remote side | 1000×630μm | ||
Repetition accuracy | 150μm(measuring distance 200mm-400mm) 400μm(Measuring distance 400mm-600mm) | ||
| linearity | ±0.2% F.S. (measuring distance 200mm-400mm) ±0.3% F.S. (measuring distance 400mm-600mm) | ||
| Temperature characteristic | 0.05% F.S./℃ | ||
| Sampling frequency (Hz) | 100/200/1000Hz(3 levels optional) | ||
| Input/output | Analog output | 1 analog output, analog voltage (0~5V) or analog current (4~20mA) Analog voltage or analog current cannot be switched | |
| IO input | 1 way, support laser shutdown, teaching, trigger, zero and other functions | ||
| IO output | 1 route, determine the status output | ||
Operating temperature | -10 ~ 50℃ | ||
| Storage temperature | -20 ~ 60℃ | ||
| Working humidity | 35% to 85% no condensation | ||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | ||
| ESD protection | Contact discharge is 4kV and air discharge is 8kV, in line with IEC 61000-4-2 standards | ||
| VIBRATION | 10~55Hz, dual amplitude 1.5mm,2 hours in X, Y, and Z directions respectively | ||
| impact | 500m/s ² (approximately 50G), 3 times in X, Y, and Z directions respectively | ||
| IP level | IP67, in accordance with IEC 60529 standard | ||
| Size (mm) | 44.4*25*20 | ||
| Weight (including cables) | 86g | ||
