Radiator Aluminum Plate Flatness with SinceVision 3D Laser Profiler
Industry pain points and demands
Flatness issues in radiator aluminum plates can compromise thermal conductivity and assembly precision, affecting overall vehicle performance. Accurate flatness detection is essential to ensure the quality of automotive radiators.
SinceVision Solution: 3D Laser Profiler

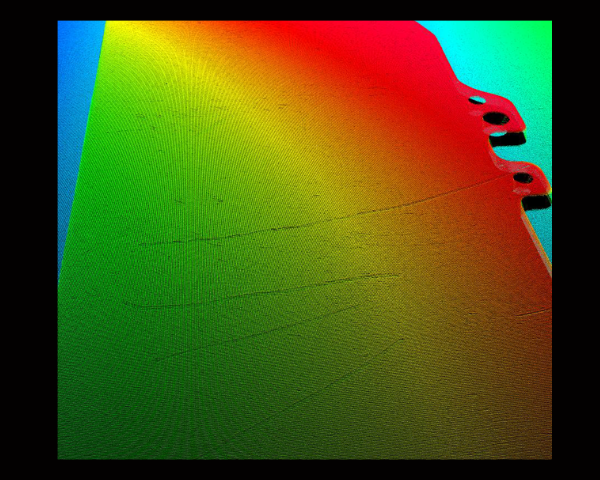

Imaging effect picture
Imaging effect picture
SinceVision Solution: 3D Laser Profiler
01High Precision: Achieves 0.015MM flatness detection for superior quality assurance.
02Fast and Reliable: Delivers quick results without compromising accuracy.
03Versatile Performance: Designed specifically for automotive radiator aluminum plates.
Camera Selection
| Model number | SR7060 | |||
| Reference distance (CD) | 80mm | |||
| Measuring range | Z-axis height (FS) | 9.5 mm | ||
| X-axis width | Near side | 41.5 mm | ||
| Reference distance | 44mm | |||
| Remote side | 46.5 mm | |||
| Light source | Light source wavelength | 405nm blue light | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 0.3μm | ||
| X-axis (width) | 4 μm | |||
| linearity | Z-axis (height) | ±0.05% F.S. | ||
| Contour data interval | X-axis (width) | 15 microns | ||
| X-axis contour points | 3200 | |||
| Reflection Angle (°) | 30 | |||
| Scanning speed (Hz) | 2500 ~ 10000 | |||
| Dimension (mm) | 156×97.5×55 | |||
| Weight (g) | 750 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential encoder is supported | |||
| Input/output | 1 RS232 interface, 1 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working Humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs (10-500Hz), compliant with IEC 68-2-6 Fc standard | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
