Rotor Clearance Detection for Automotive Manufacturing with SinceVision Laser Profiler
Industry pain points and demands

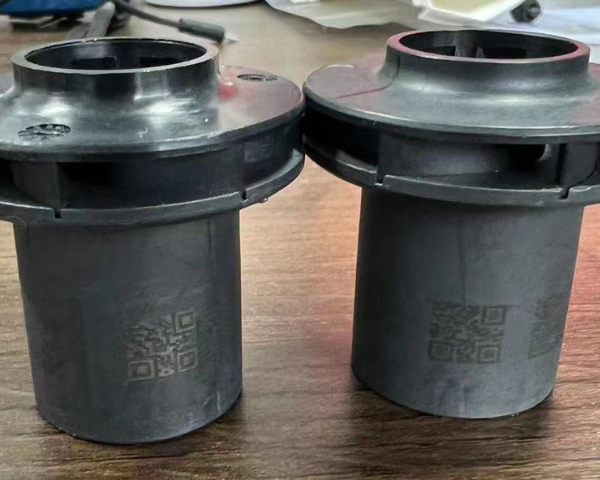

Rotor clearance is a critical factor in automotive performance. Improper gaps can result in reduced efficiency, increased wear, and potential mechanical failures. Detecting and maintaining precise rotor clearances is essential for ensuring optimal vehicle functionality and durability.
SinceVision Solution: SR7140 3D Laser Profiler
01High Precision: Measures rotor clearance with 0.03MM repeatability for exacting quality control.
02Fast and Reliable: Performs rapid inspections without compromising on accuracy.
03Versatile Application: Tailored for large-scale automotive manufacturing environments.
Camera Selection
| Model number | SR7140 | |||
| Reference distance (CD) | 140mm | |||
| Measuring range | Z-axis height (FS) | 24mm | ||
| X-axis width | Near side | 89mm | ||
| Reference distance | 95mm | |||
| Remote side | 96mm | |||
| Light source | Light source wavelength | 405nm blue light | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 0.5μm | ||
| X-axis (width) | 8μm | |||
| linearity | Z-axis (height) | ±0.05% F.S. | ||
| Contour data interval | X-axis (width) | 30μm | ||
| X-axis contour points | 3200 | |||
| Reflection Angle (°) | 28 | |||
| Scanning speed (Hz) | 2500 ~ 10000 | |||
| Dimension (mm) | 143×93.2×48.3 | |||
| Weight (g) | 730 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential coders are supported | |||
| Input/output | 1 RS232 interface, 1 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working Humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs（10-500Hz）符合 IEC 68-2-6 Fc标准标准 | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
