Sealing Ring Damage Detection with SinceVision 3D Laser Profiler
Industry pain points and demands
In automotive assembly, sealing rings play a crucial role in maintaining airtight and watertight seals. Damage or defects in sealing rings can compromise vehicle performance, leading to potential leaks and safety hazards. Detecting such defects with high precision is essential for quality assurance.
Physical Picture or Imaging Effect Picture

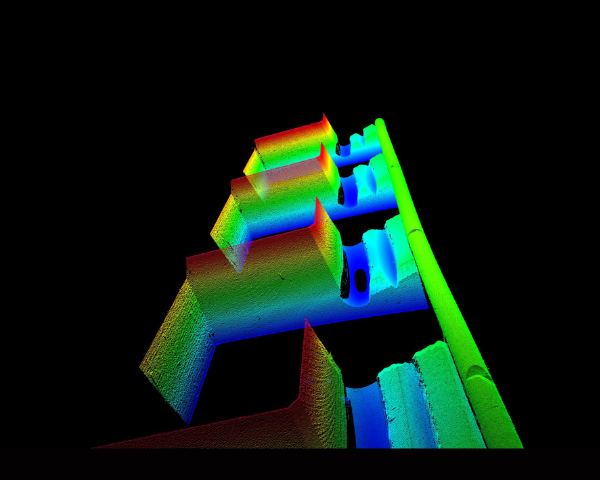

Imaging effect picture

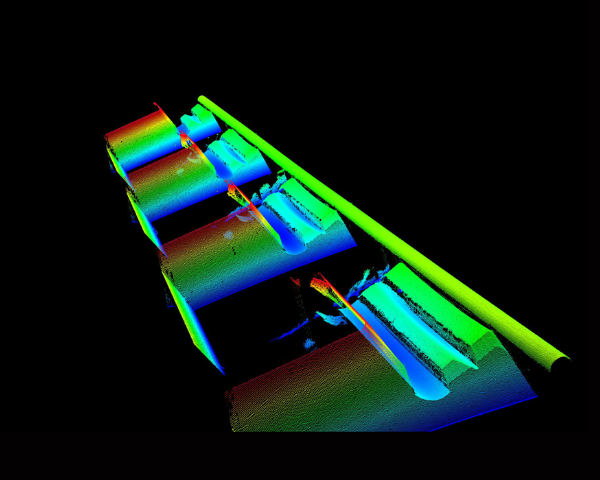

Imaging effect picture
SinceVision Solution: 3D Laser Profiler
01High Accuracy: Achieves a damage detection accuracy of 0.04MM for pinpoint inspections.
02Comprehensive Detection: Captures subtle damages like cracks, dents, or surface irregularities.
03Efficient Processing: Enables fast and reliable analysis for large-scale manufacturing.
Camera Selection
| Model number | SR7140 | |||
| Reference distance (CD) | 140mm | |||
| Measuring range | Z-axis height (FS) | 24mm | ||
| X-axis width | Near side | 89mm | ||
| Reference distance | 95mm | |||
| Remote side | 96mm | |||
| Light source | Light source wavelength | 405nm blue light | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 0.5μm | ||
| X-axis (width) | 8μm | |||
| linearity | Z-axis (height) | ±0.05% F.S. | ||
| Contour data interval | X-axis (width) | 30μm | ||
| X-axis contour points | 3200 | |||
| Reflection Angle (°) | 28 | |||
| Scanning speed (Hz) | 2500 ~ 10000 | |||
| Dimension (mm) | 143×93.2×48.3 | |||
| Weight (g) | 730 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential coders are supported | |||
| Input/output | 1 RS232 interface, 1 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working Humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs（10-500Hz）符合 IEC 68-2-6 Fc标准标准 | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
