Trolley Collision Testing to Enhance Automotive Safety with SinceVision High-Speed Cameras
Industry pain points and demands

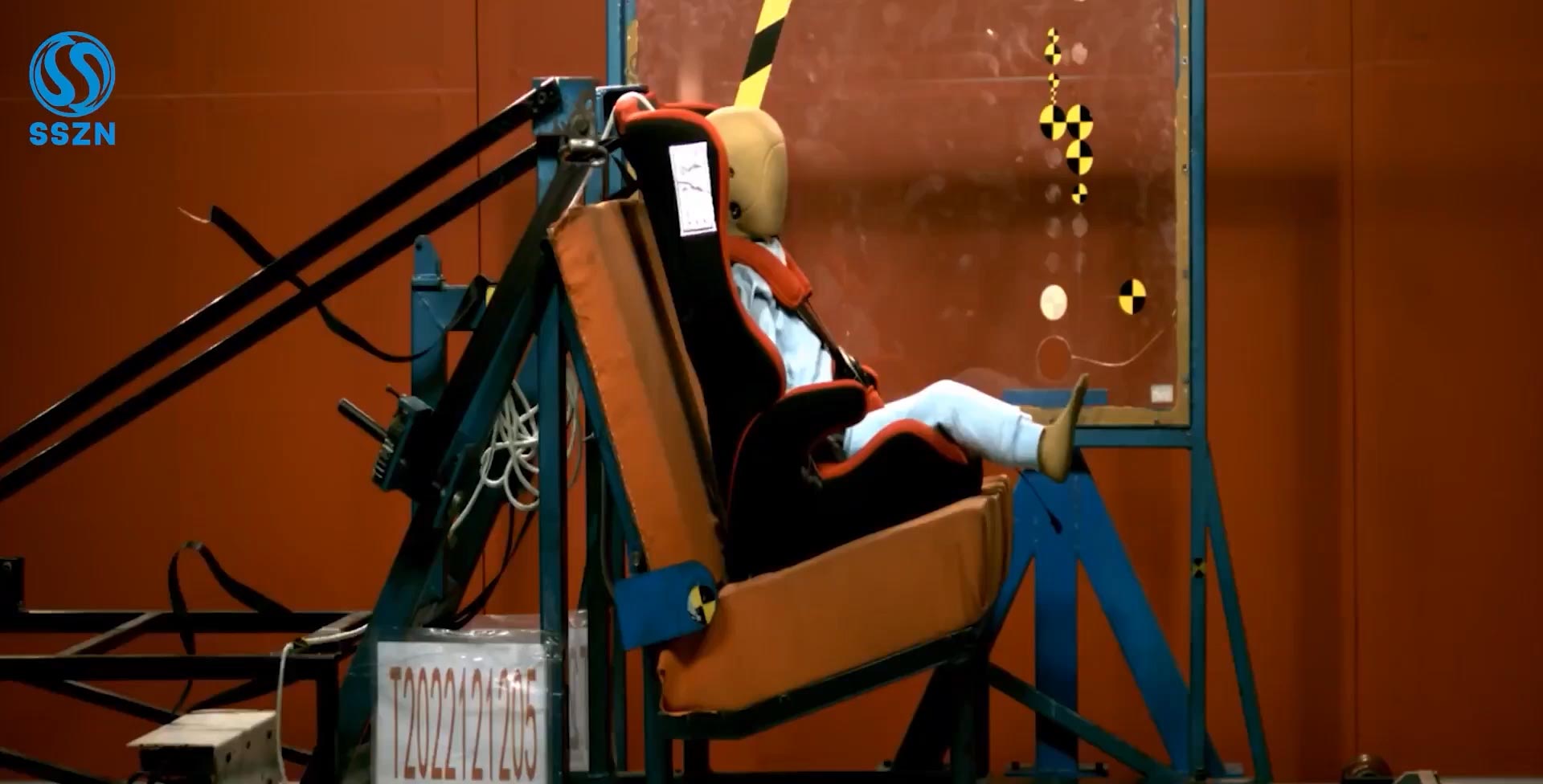

Crash tests are vital for evaluating automotive safety performance during collisions, helping to minimize accidents. In dynamic collision tests for children's safety seats, precise measurements of dummy head displacement, chest acceleration, and abdominal impact are crucial for ensuring child protection.
SinceVision's high-speed cameras capture these critical moments with exceptional accuracy, enabling researchers to assess safety seat effectiveness by recording the dummy's head movement and acceleration at impact. This detailed data drives improvements in automotive safety, ensuring superior protective measures for young passengers.
Application Video
SinceVision Solution: SH6-504 High-Speed Camera
01SinceVision's high-speed camera offers a resolution of 2560x2016 pixels and captures motion at 3000fps, providing exceptional clarity and detail for analyzing automotive collision tests.
02Equipped for detailed motion trajectory analysis, the SH6-504 delivers high-definition color image quality, making it indispensable for safety assessments and research in the automotive industry.
Camera Selection
| Specification | |||
| Model number | TYPE | SH6-504 | |
| Maximum resolution | Full Resolution | 2560 x 2016 | |
| Full shot speed | Full Frame Rate | 3600fps | |
| Maximum shooting speed | Maximum Frame Rate | 50000fp | |
| Minimum exposure time | Minimum Exposure Time | 1 mu s | |
| Pixel size | Pixel Size | 9 microns | |
| Standard memory | Standard RAM | 40 GB, 80 GB, and 160 GB are optional | |
| Extended memory | Extended Memor | 4T, 12T, and 20T are optional | |
| Dynamic range | Dynamic Range | 60dB | |
| Analog gain | Analog Gain | X 2, x 4, x 8 | |
| Bit depth | Bit Resolution | 8bit/10bit/12bit | |
| Shutter type | Shutte Mode | Global shutter | |
| color | Color | Monochrome (M)/Color (C) | |
| Window acquisition | ROI | support | |
| Lens bayonet | Lens Mount | Port E is used to switch to ports F, C, and EF | |
| Data interface | Data Interface | Ten Gigabit Ethernet, adaptive Gigabit Ethernet | |
| sensitivity | Sensitivity | ISO10000(M); ISO3000(C) | |
| Fan control | Fan Control | Supports opening and closing, and ADAPTS the rotation speed according to the temperature | |
| Operating Temperature/Humidity | Operating Temperature/Humidity | Standard -10~50 ℃, below 95% (without condensation), customizable -35~65 ℃ wide temperature version | |
| Video Signal Output | Video Signal Output | SDI, Ethernet | |
| Recording Mode | Recording Mode | Start, End, Center, Random, Manual | |
| Trigger Mode | Trigger Mode | Manual, IO, Image | |
| External Signal | External Signal |
Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIGB code signal Output: trigger (TTL/switch) signal, synchronization signal, ready signal, exposure signal, recording signal | |
| Power Supply | Power Supply | Dual power supply, DC24V | |
| Dimensions (excluding lens) | Dimensions (excluding lens) | 217D × 110W × 110H, excluding raised parts | |
| Weight | Weight | 3.8kg | |
| Power Consumption | Power Consumption | 55W | |
| Standard Accessories | Standard Accessories | Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one | |
