Flatness Detection with SinceVision Laser Displacement Sensors

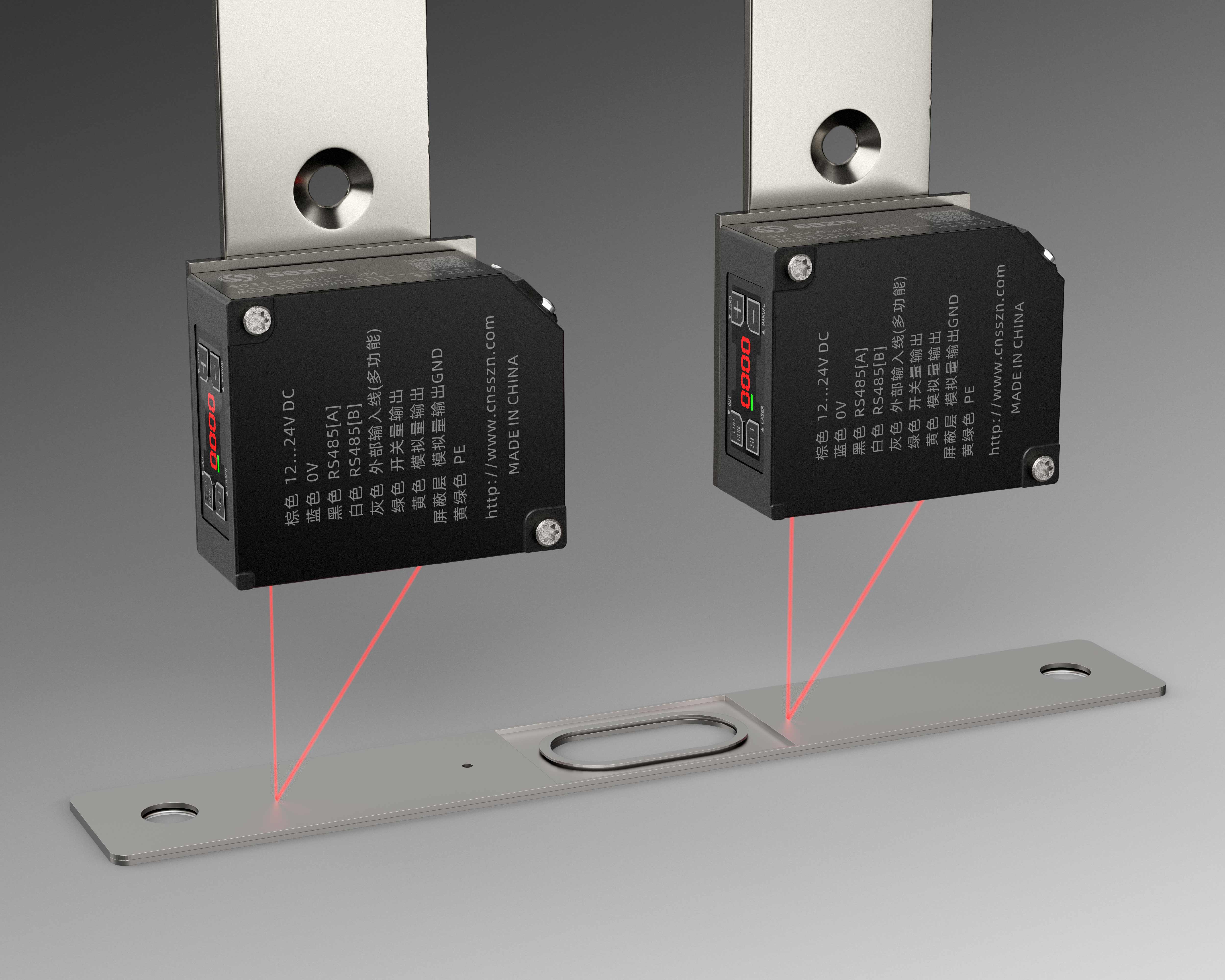

In lithium battery production, maintaining strict dimensional accuracy of the external top cover and aluminum shell is essential. Any deviation in the flatness of the top cover can disrupt the subsequent welding and liquid injection processes. SinceVision's SD33-85 Laser Displacement Sensors can be strategically placed to measure the top cover's points, accurately determining flatness by analyzing the ranging values from each sensor. This ensures optimal precision in the production process, crucial for maintaining high-quality standards in the lithium industry.
SinceVision Solution: SD33-85 Laser Displacement Sensors
Camera Selection
| Model number | SD33-85-485-VA | ||
| Reference distance (CD) | 85mm | ||
| Measuring range | ±15mm | ||
| Light source | Light source wavelength | 655nm | |
| Laser class | Class 2 | ||
| Laser output power | 1mW | ||
| Spot diameter (spot size) | Proximal end | 150 * 600 microns | |
| Reference distance | 140 * 990 microns | ||
| Distal end | 190 * 1200 microns | ||
Repetition accuracy | 10 microns | ||
| linearity | ±0.1% F.S. | ||
| Temperature characteristic | 0.05% F.S./℃ | ||
| Sampling frequency (Hz) | 500/1000/2000/3000Hz(4 levels optional) | ||
| Input/output | Communication port | 1 RS485 (support ModbusRTU) | |
| Analog output | 1 analog output, analog voltage (0~10V) or analog current (4~20mA) Analog voltage or analog current cannot be switched | ||
| IO input | 1 channel, support laser shutdown, remote teaching, sampling hold, single pulse trigger, return to zero and other functions | ||
| IO output | 1 route, determine the status output | ||
Operating temperature | -10 ~ 50℃ | ||
| Storage temperature | -20 ~ 70℃ | ||
| Working humidity | 35% to 85% no condensation | ||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | ||
| ESD protection | Contact discharge is 4kV and air discharge is 8kV, in line with IEC 61000-4-2 standards | ||
| Vibration | 10~55Hz, dual amplitude 1.5mm, 2 hours in X, Y, and Z directions respectively | ||
| Impact | 500m/s ² (approximately 50G), 3 times in X, Y, and Z directions respectively | ||
| IP level | IP67, in accordance with IEC 60529 standard | ||
| Size (mm) | 60*50*22 | ||
| Weight (including cables) | 120g | ||
