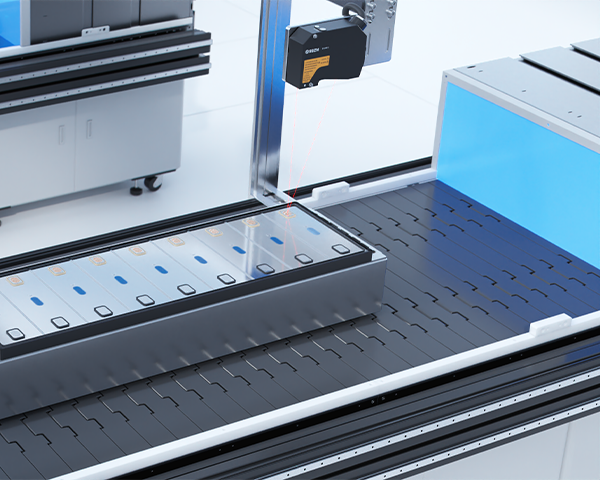

Cell Terminal Addressing and Height Measurement with Laser Displacement Sensor
Industry pain points and demands
In lithium battery production, accurate identification of cell terminal position and height is crucial to ensure reliable connections and assembly precision.
SinceVision’s SG Series laser displacement sensors are engineered to meet these needs with exceptional precision and speed. Offering 0.05μm repeatability and dynamic measurement at 88kHz, the system captures terminal coordinates and height deviations in real time.
With focus error controlled to ≤0.05mm, the sensor provides robust guidance for polarity recognition and alignment, enhancing the accuracy and consistency of automated processes in cell-pack assembly lines.
SinceVision Solution: SGI400 Laser Displacement Sensor
01Ultra-Precise Terminal Detection: The SG Series delivers 0.05μm repeatability and 88kHz high-speed dynamic measurement to pinpoint cell terminal coordinates and height deviations.
02Accurate Alignment & Polarity Guidance: Focus error is kept within ≤0.05mm, enabling reliable polarity recognition and component alignment for automation systems.
03
Camera Selection
| Model number | SGI400/SGI405 | ||
| Reference distance (CD) | 400mm | ||
| Measuring range | -100mm~100mm | ||
| Light source | Light source wavelength | 655nm | |
| Laser class | Class 2 | ||
| Laser output power | 5mW | ||
| Spot diameter (spot size) | Round spot | Φ450μm | |
| Wide spot | 450×1300μm | ||
Repetition accuracy ① | 2μm | ||
| linearity | ±0.05% F.S. | ||
| Temperature characteristic | 0.01% F.S./℃ | ||
| Sampling frequency (Hz) | 1/2/5/10/20/50/88kHz(7 levels optional) | ||
| Input/output | Communication port | One 100Base-TX/1000Base-T Ethernet port, one RS485 port | |
| Analog output | 1 analog output, support analog voltage and analog current switching | ||
| IO input | 2 way, timing, return to zero function and single-end encoder function multiplexing | ||
| IO output | 4, determine the status output | ||
| Operating temperature | 0 ~ 50 ℃ | ||
| Storage temperature | -20 ~ 70℃ | ||
| Working humidity | 35% to 85% no condensation | ||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | ||
| ESD protection | Contact discharge is 4kV and air discharge is 8kV, in line with IEC 61000-4-2 standards | ||
| vibration | 10Gs (10-500Hz), conform to the IEC 2-6 Fc standard | ||
| Impact | 50Gs/3ms per axis conforms to the IEC 2-27 Ea standard | ||
| IP level | IP67, complies with IEC 60529 standard | ||
| Dimensions (mm) | 119×85×35 | ||
| Data cable (wiring) model | SCB-GICAM-HA1-3m/6m/10m | ||
| Weight (including cables) | 380g | ||
