Appearance & Full-Dimension Inspection for Lithium Battery Modules with 3D Laser Profiler
In lithium battery production, the appearance and dimensional integrity of modules are critical to ensuring assembly efficiency and long-term performance. Variations in flatness, contour, or surface defects can lead to poor sealing, misalignment, or reduced product reliability.
SinceVision’s 3D laser profile measurement system uses multi-camera stitched-through-beam scanning to precisely detect surface conditions and dimensional consistency. It thoroughly inspects both the top and bottom covers of each battery module for flatness deviations, profile distortions, and dimensional mismatches within 0.08mm to 0.1mm tolerance ranges.
Simultaneously, it identifies surface defects like dents, bumps, and scratches, helping manufacturers meet strict quality standards while enhancing downstream assembly performance and product reliability.

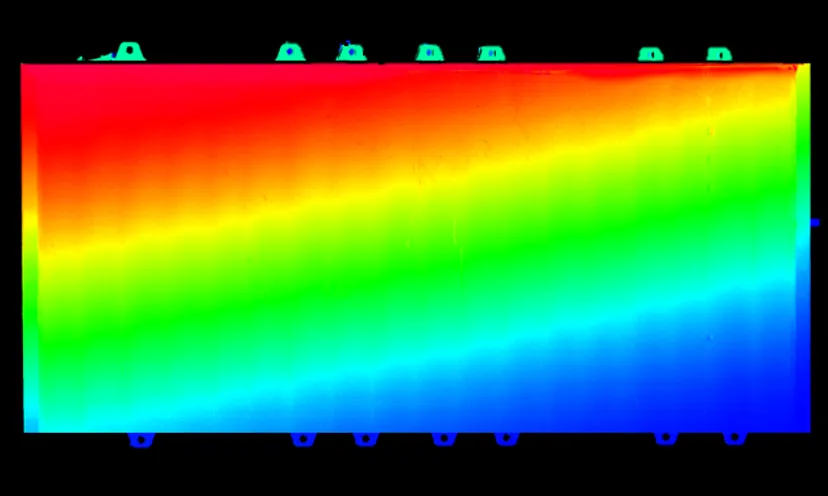

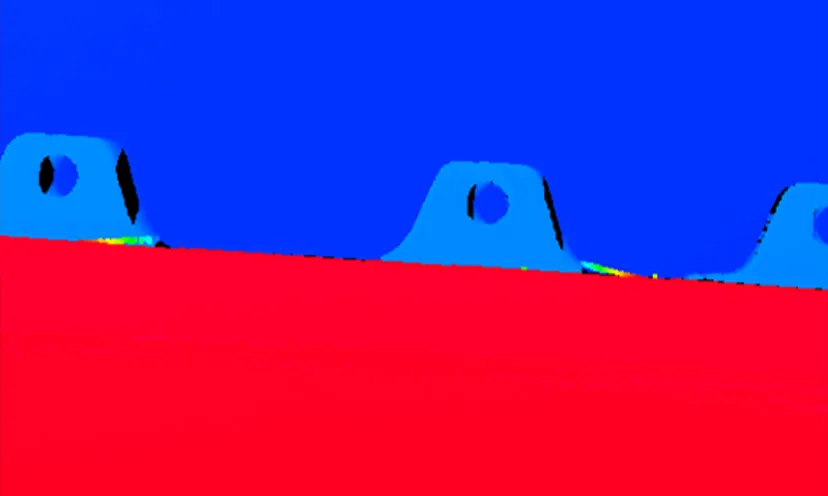

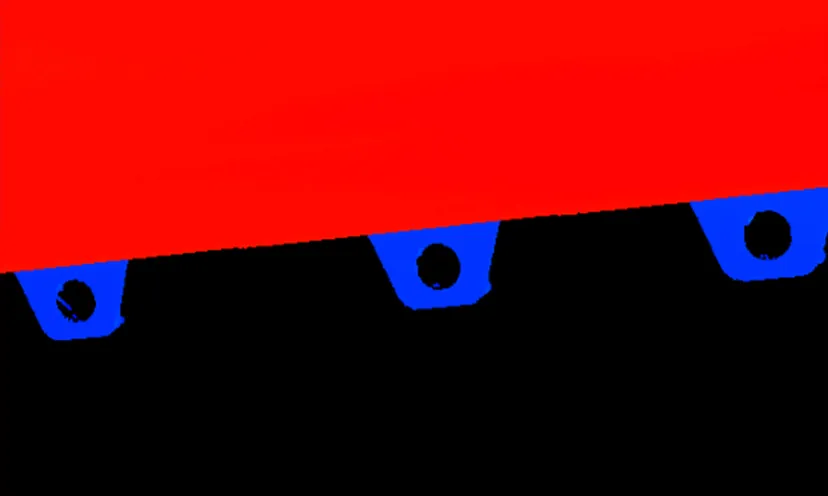

Effect Display

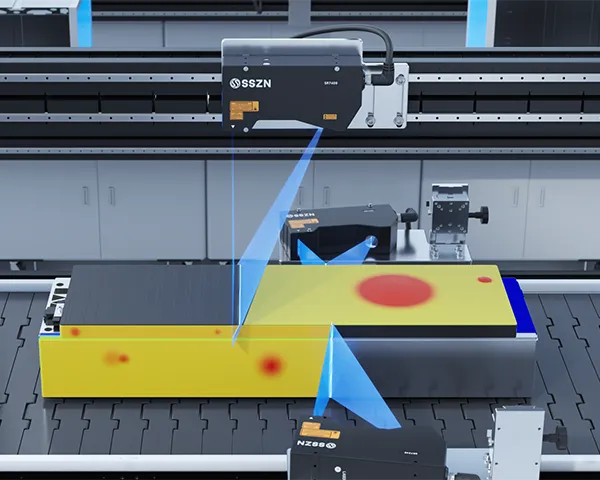

SinceVision Solution: Dual 3D Laser Profiler - SR7240 long side/SR7400 top
Camera Selection
| Model number | SR7240 | |||
| Reference distance (CD) | 240mm | |||
| Measuring range | Z-axis height (FS) | 40mm | ||
| X-axis width | Near side | 138mm | ||
| Reference distance | 147mm | |||
| Remote side | 157mm | |||
| Light source | Light source wavelength | 405nm blue light | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 1μm | ||
| X-axis (width) | 13μm | |||
| linearity | Z-axis (height) | ±0.05% F.S. | ||
| Contour data interval | X-axis (width) | 50μm | ||
| X-axis contour points | 3200 | |||
| Reflection Angle (°) | 26 | |||
| Scanning speed (Hz) | 2500 ~ 10000 | |||
| Dimension (mm) | 189.5×93×48 | |||
| Weight (g) | 840 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential coders are supported | |||
| Input/output | One 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working Humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs (10-500Hz), compliant with IEC 68-2-6 Fc standard | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
| Model number | SR7400 | |||
| Reference distance (CD) | 400mm | |||
| Measuring range | Z-axis height (FS) | 200mm | ||
| X-axis width | Near side | 180mm | ||
| Reference distance | 220mm | |||
| Distal end | 280mm | |||
| Light source | Light source wavelength | 405nm blue light | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 5μm | ||
| X-axis (width) | 20μm | |||
| linearity | Z-axis (height) | ±0.05% F.S. | ||
| Contour data interval | X-axis (width) | 90μm | ||
| X-axis contour points | 3200 | |||
| Reflection Angle (°) | 17 | |||
| Scanning speed (Hz) | 2500 ~ 8000 | |||
| Dimension (mm) | 189.5×93×48 | |||
| Weight (g) | 840 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential coders are supported | |||
| Input/output | One 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working Humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs（10-500Hz）符合 IEC 68-2-6 Fc标准标准 | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
