Cavitation bubble observation
Industry pain points and demands

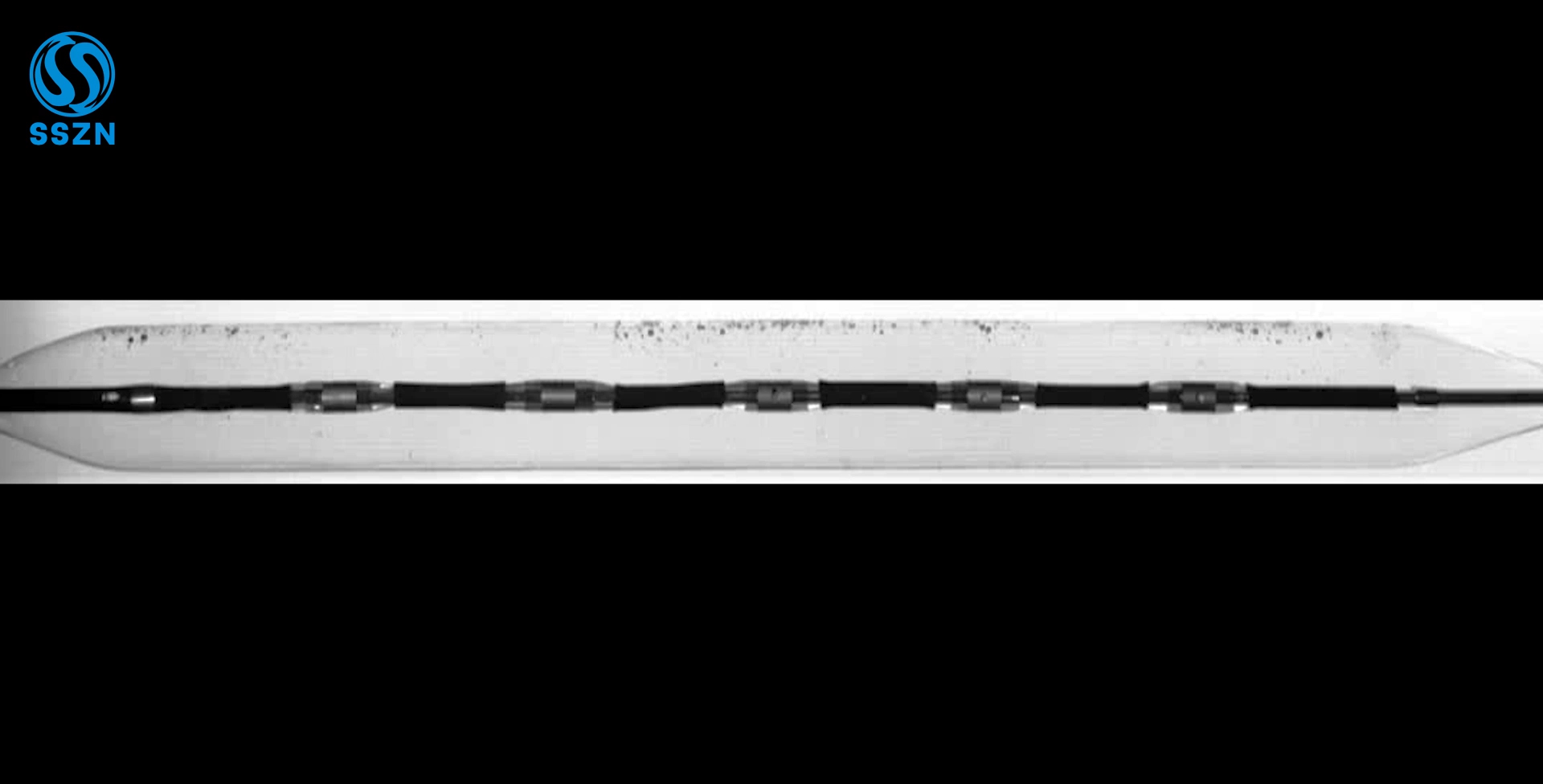

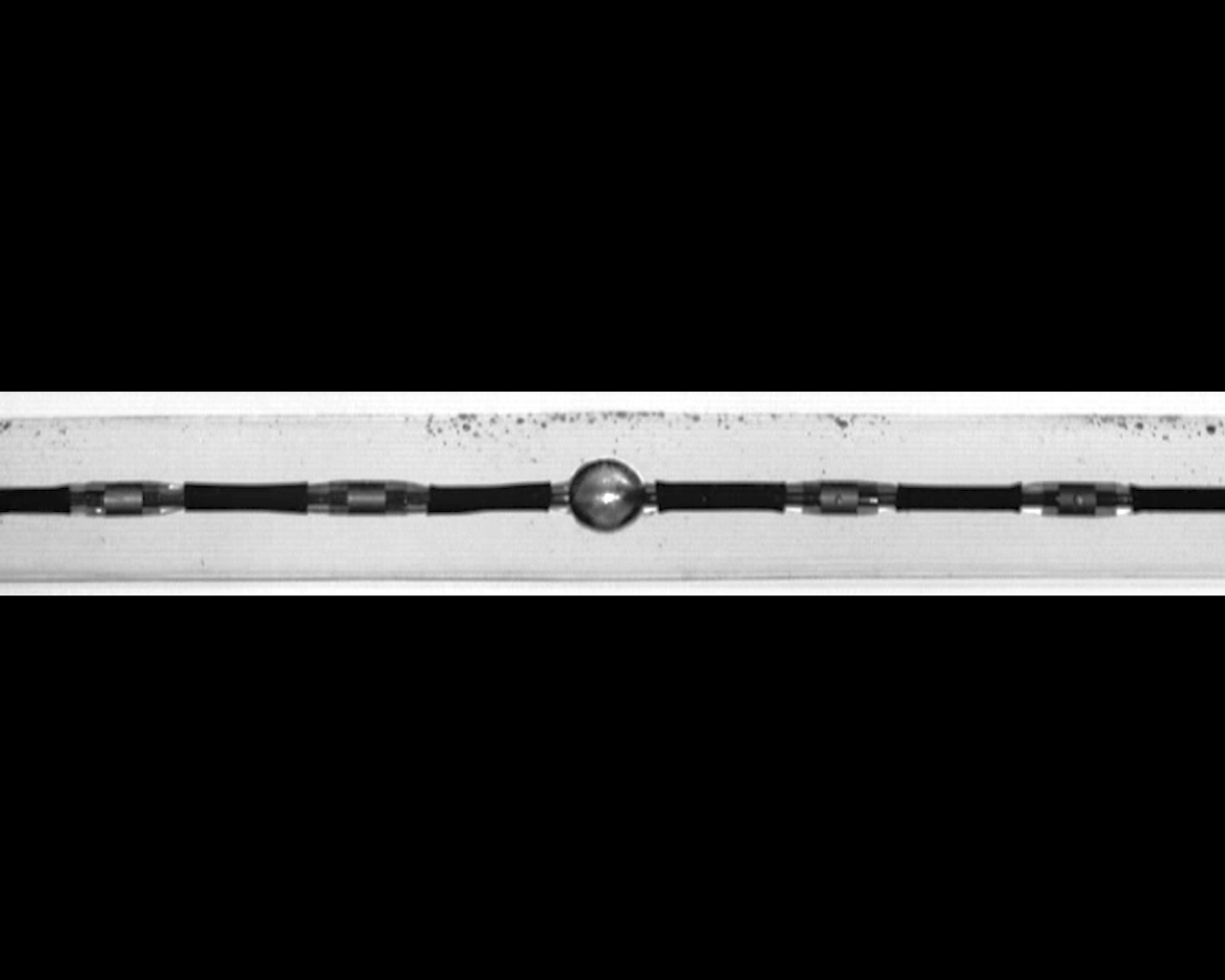

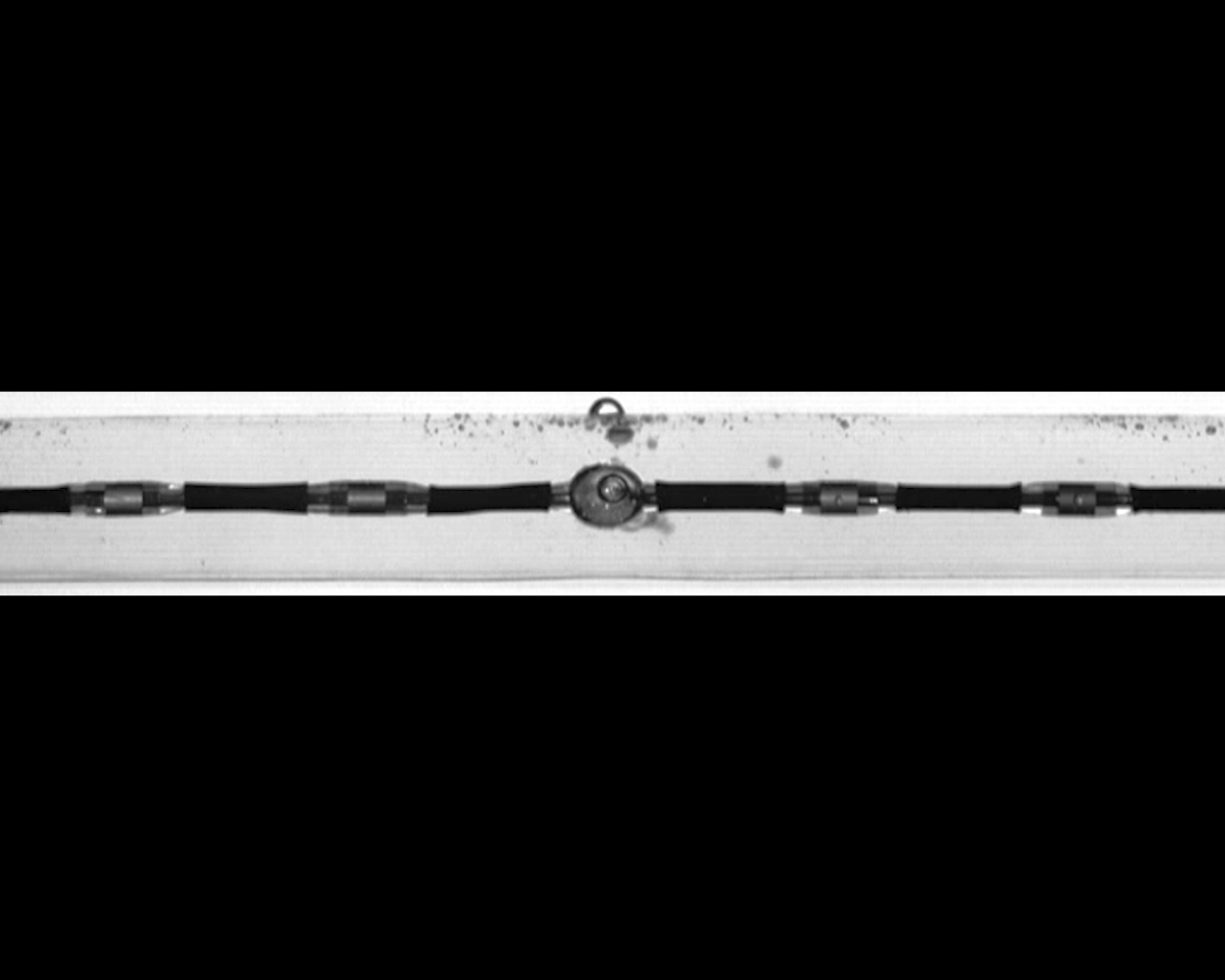

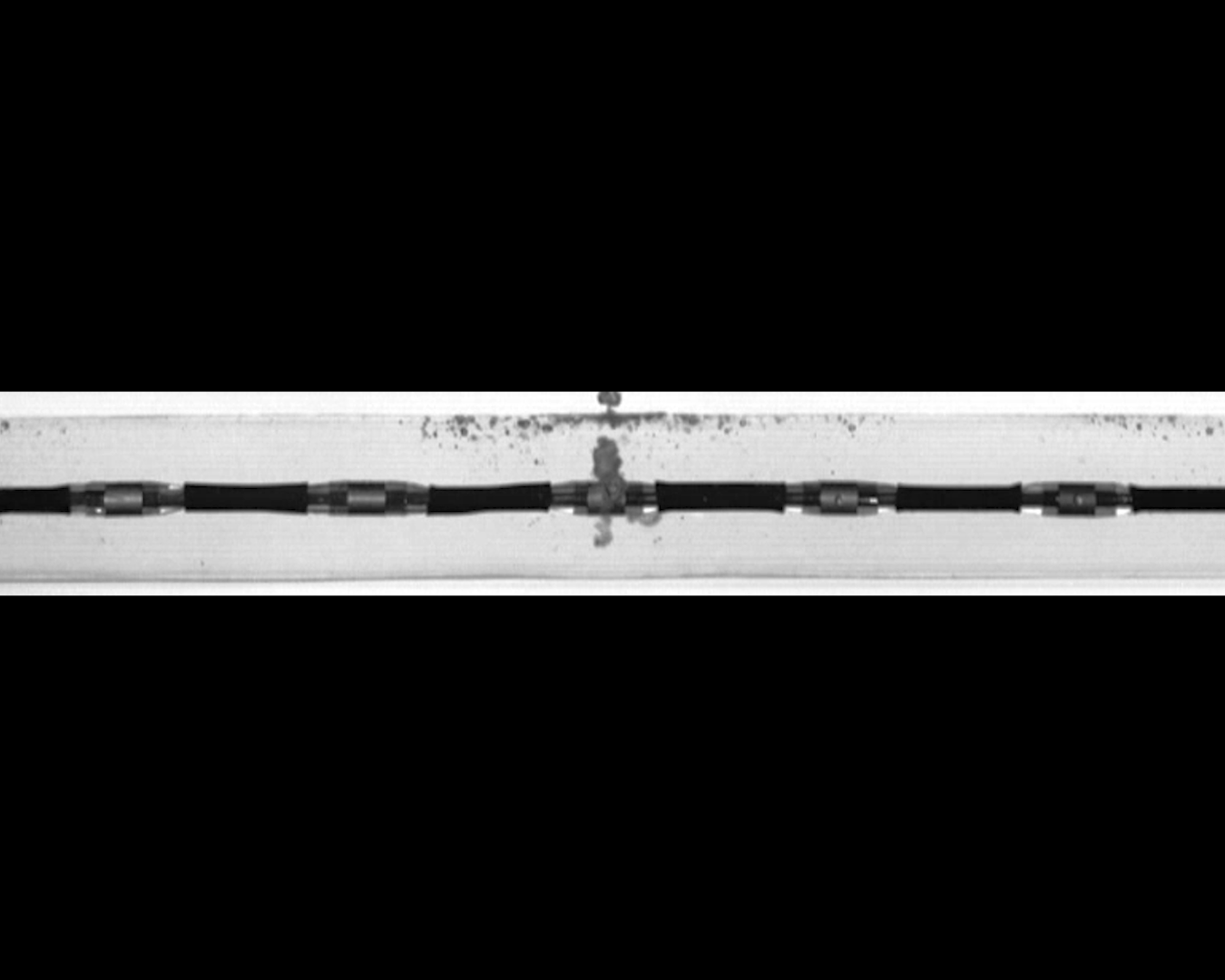

Balloon catheter with different power supply host, impact pressure, discharge pulse width, voltage will produce shock wave, resulting in balloon catheter and nearby area cavitation phenomenon, produce different specifications, different positions of very fast bubbles, the force has a great impact on the product, so customers need to observe the effect of bubbles under different conditions, in order to judge the direction of improvement.
Video display
Advantages & characteristics
01
The camera has a resolution of 1280×128 and a frame rate of 100000fps
02
Intelligent image trigger, ultra high speed imaging
Camera Selection
| specification | |||
| Model number | TYPE | SH6-113 | |
| Maximum resolution | Full Resolution | 1280 x 1024 | |
| Full shot speed | Full Frame Rate | 13600fps | |
| Maximum shooting speed | Maximum Frame Rate | 1000000fp | |
| Minimum exposure time | Minimum Exposure Time | 1μs(Standard), 100 NS (Optional) | |
| Pixel size | Pixel Size | 14.6 mu m | |
| Standard memory | Standard RAM | 40 GB, 80 GB, and 160 GB are optional | |
| Extended memory | Extended Memor | 4T, 12T, and 20T are optional | |
| Dynamic range | Dynamic Range | 60dB | |
| Analog gain | Analog Gain | X 2, x 4, x 8 | |
| Bit depth | Bit Resolution | 8bit/10bit/12bit | |
| Shutter type | Shutte Mode | Global shutter | |
| color | Color | Monochrome (M)/Color (C) | |
| Window acquisition | ROI | support | |
| Lens bayonet | Lens Mount | Port E is used to switch to ports F, C, and EF | |
| Data interface | Data Interface | Ten Gigabit Ethernet, adaptive Gigabit Ethernet | |
| sensitivity | Sensitivity | ISO67000(M); ISO23000(C) | |
| Fan control | Fan Control | Supports on/off, adaptive speed based on temperature | |
| Operating Temperature/Humidity | Operating Temperature/Humidity | Standard -10~50 ℃, below 95% (without condensation), customizable -35~65 ℃ wide temperature version | |
| Video Signal Output | Video Signal Output | SDI, Ethernet | |
| Recording Mode | Recording Mode | Start, End, Center, Random, Manual | |
| Trigger Mode | Trigger Mode | Manual, IO, Image | |
| External Signal | External Signal |
Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIGB code signal Output: trigger (TTL/switch) signal, synchronization signal, ready signal, exposure signal, recording signal | |
| Power Supply | Power Supply | Dual power supply, DC24V | |
| Dimensions (excluding lens) | Dimensions (excluding lens) | 217D × 110W × 110H, excluding raised parts | |
| Weight | Weight | 3.8kg | |
| Power Consumption | Power Consumption | 55W | |
| Standard Accessories | Standard Accessories | Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one | |
