Industry pain points and demands

The interaction of micro-droplets with heated superhydrophobic materials is a critical area of study in the fluid mechanics industry. Such behaviors play a significant role in material science, medical devices, agriculture, and aerospace. Understanding and controlling droplet dynamics, such as deposition, rebound, and vibration, are essential for optimizing performance across these applications.

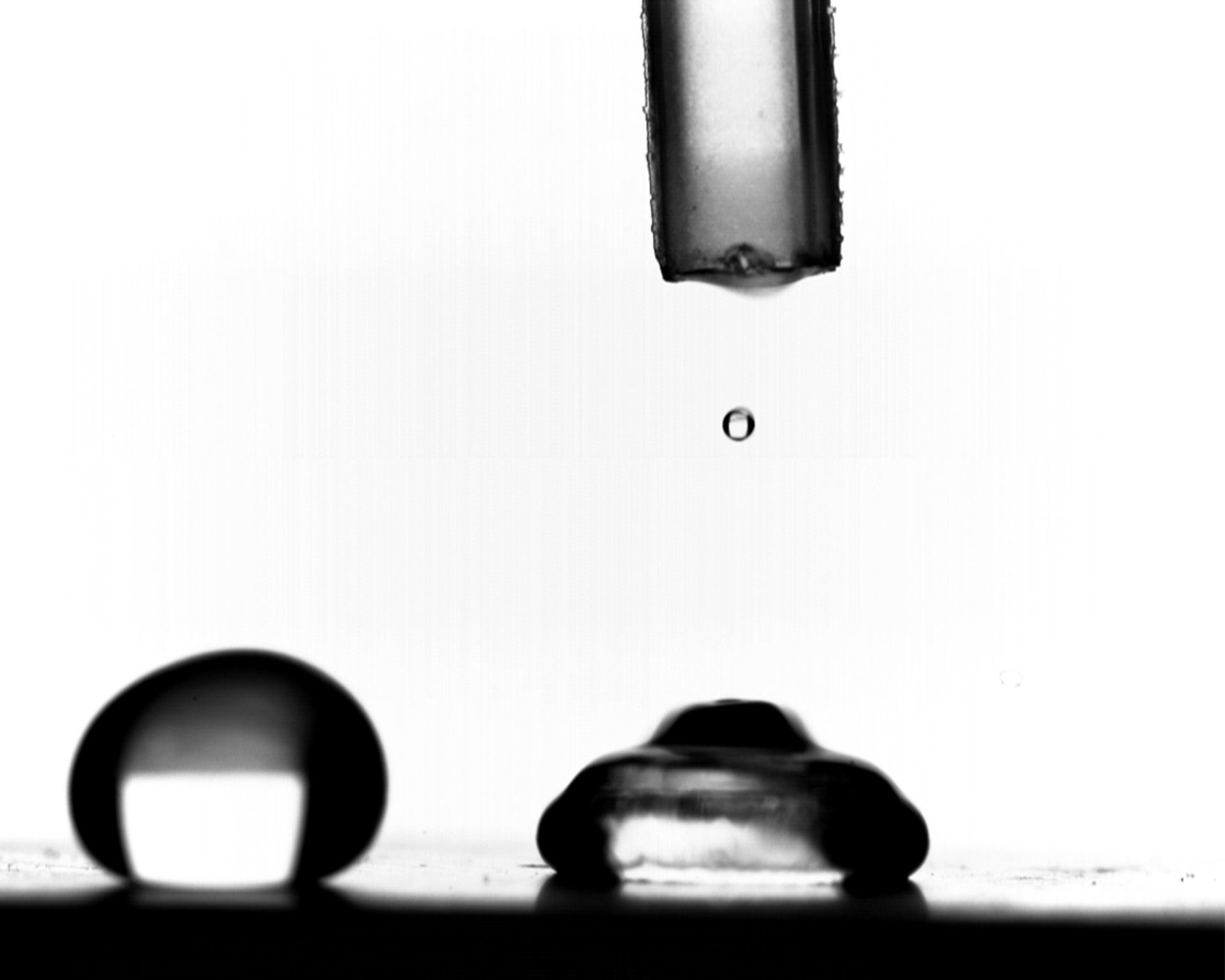

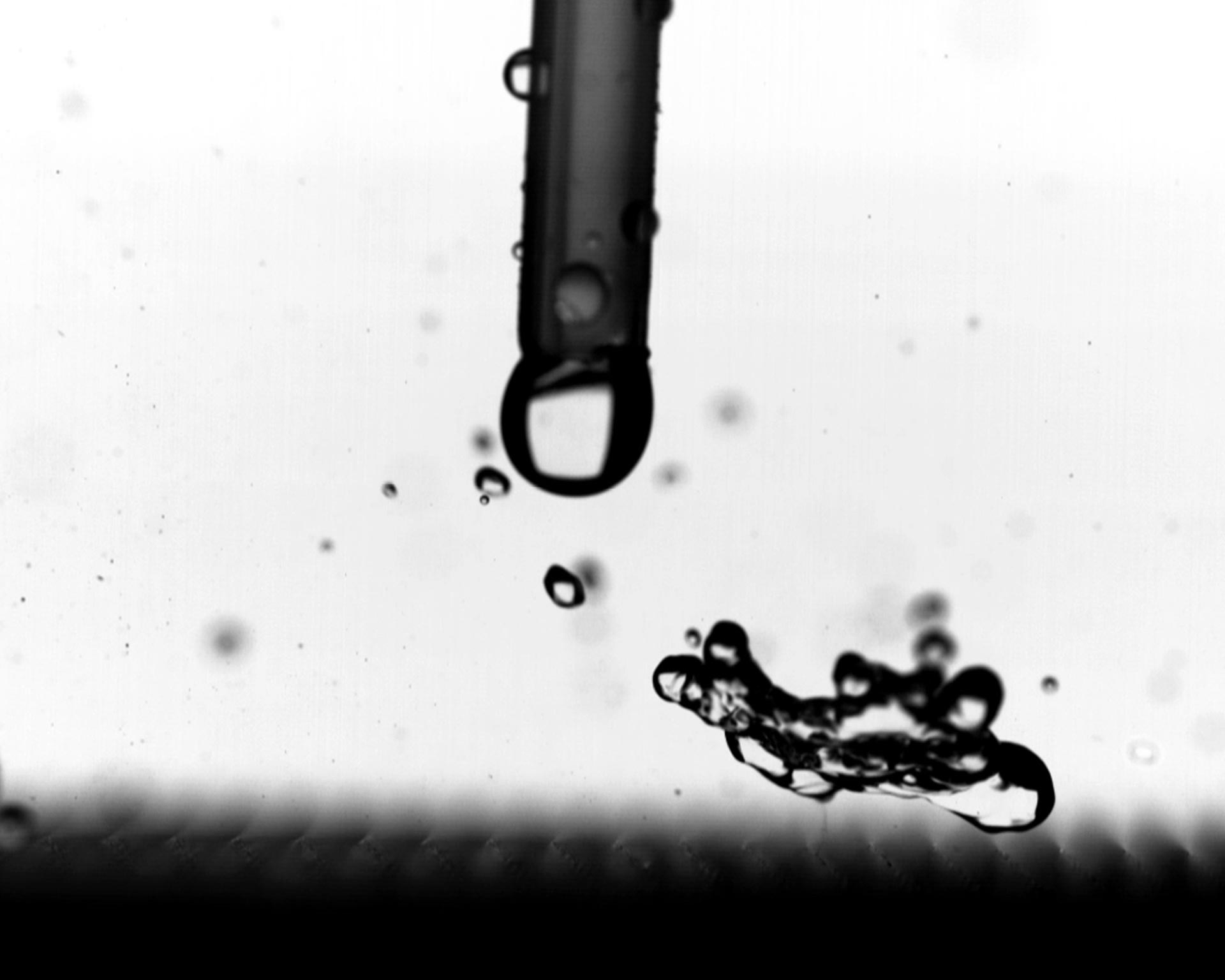

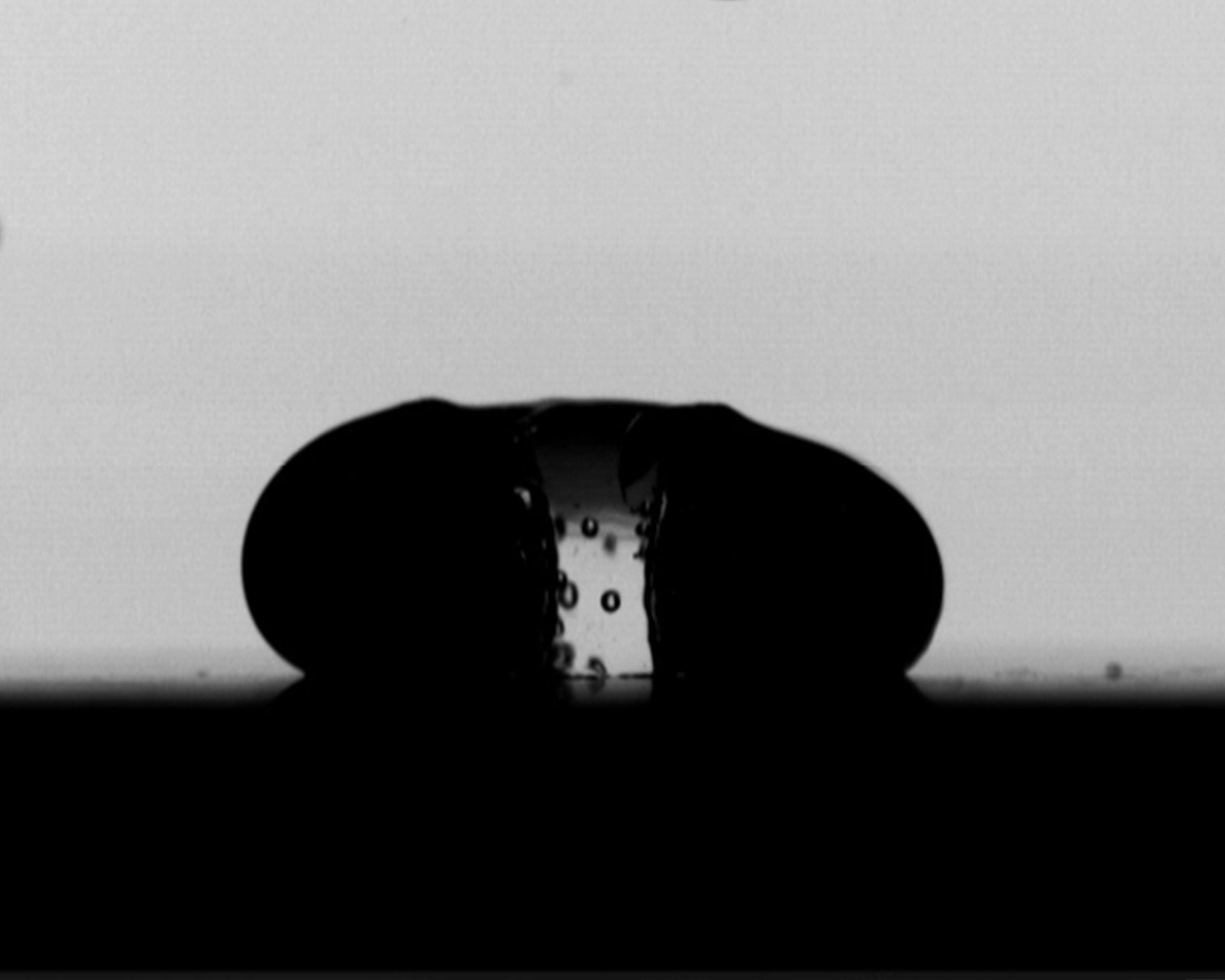

Using SinceVision high-speed cameras, researchers can capture the intricate details of droplet spreading, deformation, and rebound on superhydrophobic surfaces under varying conditions of speed and temperature. These insights are invaluable for analyzing how surface temperature impacts droplet dynamics, including viscoelastic vibrations, and provide actionable data for real-world applications.

Contact Now

SinceVision Solution: SH3-101 High-Speed Camera

01Precise Imaging: Offers 1280×1024 resolution at 1000 fps, ideal for capturing rapid and complex droplet impacts.
02Compact Yet Powerful: MINI series design combines a compact body with advanced heat dissipation, ensuring optimal performance.
03Expansive Storage: Features self-developed array parallel storage architecture, with expandable storage capacity up to 4TB for extended recording.

Camera Selection

performance
resolutionFrame rateRecord time (memory)Record time (hard disk)
16GB32GB64GB1TB2TB4TB
1280 x 10241000FPS13s26s52s13min26min52min
1280 x 8001280FPS13s26s52s13min
26min52min
1280 x 5122000FPS13s26s52s13min26min52min
1280 x 2564000FPS13s26s52s13min26min52min
1280×1288000FPS13s26s52s13min26min52min
1280×870000FPS23s46s92s24min48min96min


specification
Model number
TYPESH3-101
Maximum resolutionFull Resolution1280 x 1024
Full shot speedFull Frame Rate1000fps
Maximum shooting speedMaximum Frame Rate70000fp
Minimum exposure timeMinimum Exposure Time1μs, customized for 100 NS
Pixel sizePixel Size14.6μm
Standard memoryStandard RAM16G, 32G, and 64G are optional
Extended memoryExtended Memor1T, 2T, and 4T are optional
Dynamic rangeDynamic Range60dB
Analog gainAnalog GainX 2, x 4, x 8
Bit depthBit Resolution8bit/10bit/12bit
Shutter typeShutte ModeGlobal shutter
colourColorMonochrome (M)/Colorful (C)
Window collectionROIsupport
Lens MountLens MountE interface, can be connected to F interface, C interface, EF interface
Data InterfaceData Interface10 Gigabit Ethernet, Adaptive Gigabit Ethernet
SensitivitySensitivityISO56000(M);ISO21000(C)
Fan controlFan ControlSupports on/off, adaptive speed based on temperature
Operating Temperature/HumidityOperating Temperature/HumidityStandard -10~50 ℃, below 95% (without condensation), customizable -35~65 ℃ wide temperature version
Video Signal OutputVideo Signal OutputEthernet
Recording ModeRecording ModeStart, End, Center, Random, Manual
Trigger ModeTrigger ModeManual, IO, Image
External SignalExternal SignalInput: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIG
Output: trigger, synchronization signal, ready signal
Power SupplyPower SupplyDC24V
Dimensions (excluding lens)Dimensions (excluding lens)90D × 110W × 110H, excluding raised parts
WeightWeight<1.6kg
Power ConsumptionPower Consumption<30W
Standard AccessoriesStandard AccessoriesPower cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one
