Quartz and Graphite Boat Position Detection with Laser Displacement Sensor

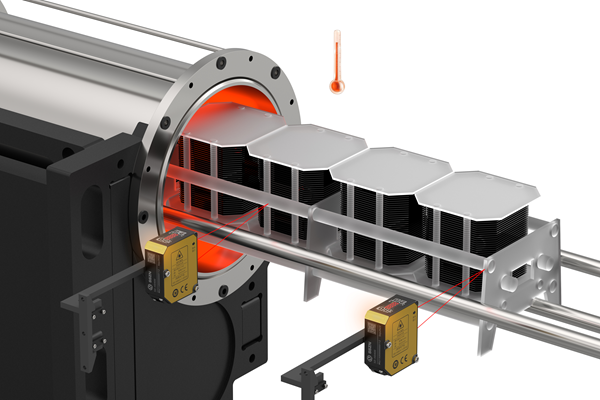

In photovoltaic production, quartz and graphite boats are vital for the diffusion and oxidation of silicon wafers in high-temperature furnaces. After completing these processes, the quartz boats exit the furnace carrying delicate silicon wafers. Accurate position detection is critical to ensure robotic arms can securely and efficiently handle these boats.
SinceVision’s SD-C400 Laser Displacement Sensors deliver precise detection of quartz and graphite boat positions. These sensors excel even on challenging frosted or translucent quartz surfaces and can operate reliably at temperatures up to 85°C. With positioning accuracy of up to 0.5 mm, they ensure seamless operation in high-demand production environments.
SinceVision Solution: SD-C400 Laser Displacement Sensors
Camera Selection
| Model number | SD-C400 | ||
| Reference distance (CD) | 400mm | ||
| Measuring range | ±200mm | ||
| Light source | Light source wavelength | 655nm | |
| Laser class | Class 2 | ||
| Laser output power | 1mW | ||
| Spot diameter (spot size) | Near side | 500×430μm | |
| Reference distance | 800×380μm | ||
| Remote side | 1000×630μm | ||
Repetition accuracy | 150μm(measuring distance 200mm-400mm) 400μm(Measuring distance 400mm-600mm) | ||
| linearity | ±0.2% F.S. (measuring distance 200mm-400mm) ±0.3% F.S. (measuring distance 400mm-600mm) | ||
| Temperature characteristic | 0.05% F.S./℃ | ||
| Sampling frequency (Hz) | 100/200/1000Hz(3 levels optional) | ||
| Input/output | Analog output | 1 analog output, analog voltage (0~5V) or analog current (4~20mA) Analog voltage or analog current cannot be switched | |
| IO input | 1 way, support laser shutdown, teaching, trigger, zero and other functions | ||
| IO output | 1 route, determine the status output | ||
Operating temperature | -10 ~ 50℃ | ||
| Storage temperature | -20 ~ 60℃ | ||
| Working humidity | 35% to 85% no condensation | ||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | ||
| ESD protection | Contact discharge is 4kV and air discharge is 8kV, in line with IEC 61000-4-2 standards | ||
| VIBRATION | 10~55Hz, dual amplitude 1.5mm,2 hours in X, Y, and Z directions respectively | ||
| impact | 500m/s ² (approximately 50G), 3 times in X, Y, and Z directions respectively | ||
| IP level | IP67, in accordance with IEC 60529 standard | ||
| Size (mm) | 44.4*25*20 | ||
| Weight (including cables) | 86g | ||
