Battery Sheet Thickness Measurement with Laser Displacement Sensor
In the photovoltaic industry, large battery sheets are segmented into smaller sheets using laser cutting technology. Before the cutting process begins, the thickness of the battery sheets must be measured to ensure the laser power matches the required specifications. Proper adjustments prevent damage to the material and ensure optimal cutting performance.

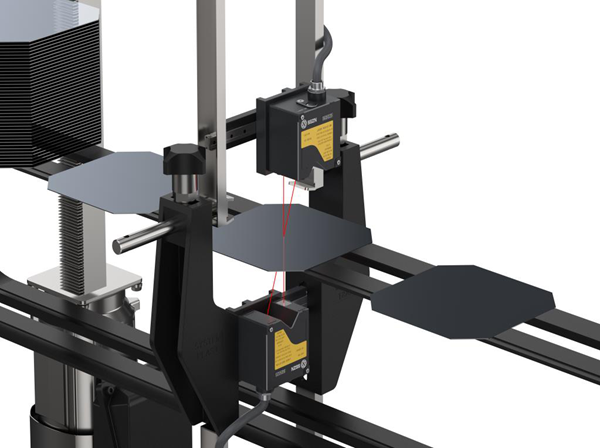

SinceVision's SG5025 Laser Displacement Sensors enable precise and non-contact thickness measurement. Utilizing a through-beam configuration with two sensors, the system collects continuous thickness data, achieving repeatability of 0.005 mm and a maximum sampling frequency of 590 kHz. This real-time feedback ensures reliable, high-quality cutting.
SinceVision Solution: SG5025 Laser Displacement Sensor
Camera Selection
| Model number | SG5020/SG5025 | ||
| Reference distance (CD) | 20mm | ||
| Measuring range | -3mm~3mm | ||
| Light source | Light source wavelength | 655nm | |
| Laser class | Class 2 | ||
| Laser output power | 5mW | ||
| Spot diameter (spot size) | Round spot | Φ45μm | |
| Wide spot | 45×400μm | ||
Repetition accuracy ① | 0.02μm | ||
| linearity | ±0.02% of F.S. | ||
| Temperature characteristic | 0.01% F.S./℃ | ||
| Sampling frequency (Hz) | 1/2/5/10/20/50 KHZ / 88/200/400/590 (optional 10 level) | ||
| Input/output | Communication port | One 100Base-TX/1000Base-T Ethernet interface, one RS232 | |
| Analog output | 1 analog output, support analog voltage and analog current switching | ||
| Encoder input | 1 group difference encoder | ||
| IO input | 14, support timing, zero, reset, laser control, formula switching and other functions | ||
| IO output | 16 channels, determine the status output | ||
| Storage temperature | -20 ~ 70℃ | ||
| Operating temperature | 0 ~ 50 ° C | ||
| Working humidity | 35% to 85% no condensation | ||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | ||
| ESD protection | Contact discharge is 4kV and air discharge is 8kV, in line with IEC 61000-4-2 standards | ||
| Vibration | 10Gs (10-500Hz) Compliant with IEC 68-2-6 Fc standard | ||
| Impact | 50Gs/3ms per axis, complies with IEC 68-2-27 Ea standard | ||
| IP level | IP67, complies with IEC 60529 standard | ||
| Dimensions (mm) | 60×61×41 | ||
| Data cable (wiring) model | SCB-GICAM-HA2-3m/5m/10m | ||
| Weight (including cables) | 324g | ||
